This camera module with 32MP sensor can be used with any of the , perfectly suited for quick prototyping.
Key features:- Sensor: IMX582
- Type: Rolling Shutter
- DFOV / HFOV / VFOV: 71° / 45° / 55°
- Resolution: 32MP (5312x6000)
- Focus: Auto-Focus: 20cm - ∞
- Max Framerate: 42 FPS
- F-number: 1.8
- Lens size: 1/2 inch
<!–--split--–>
Description

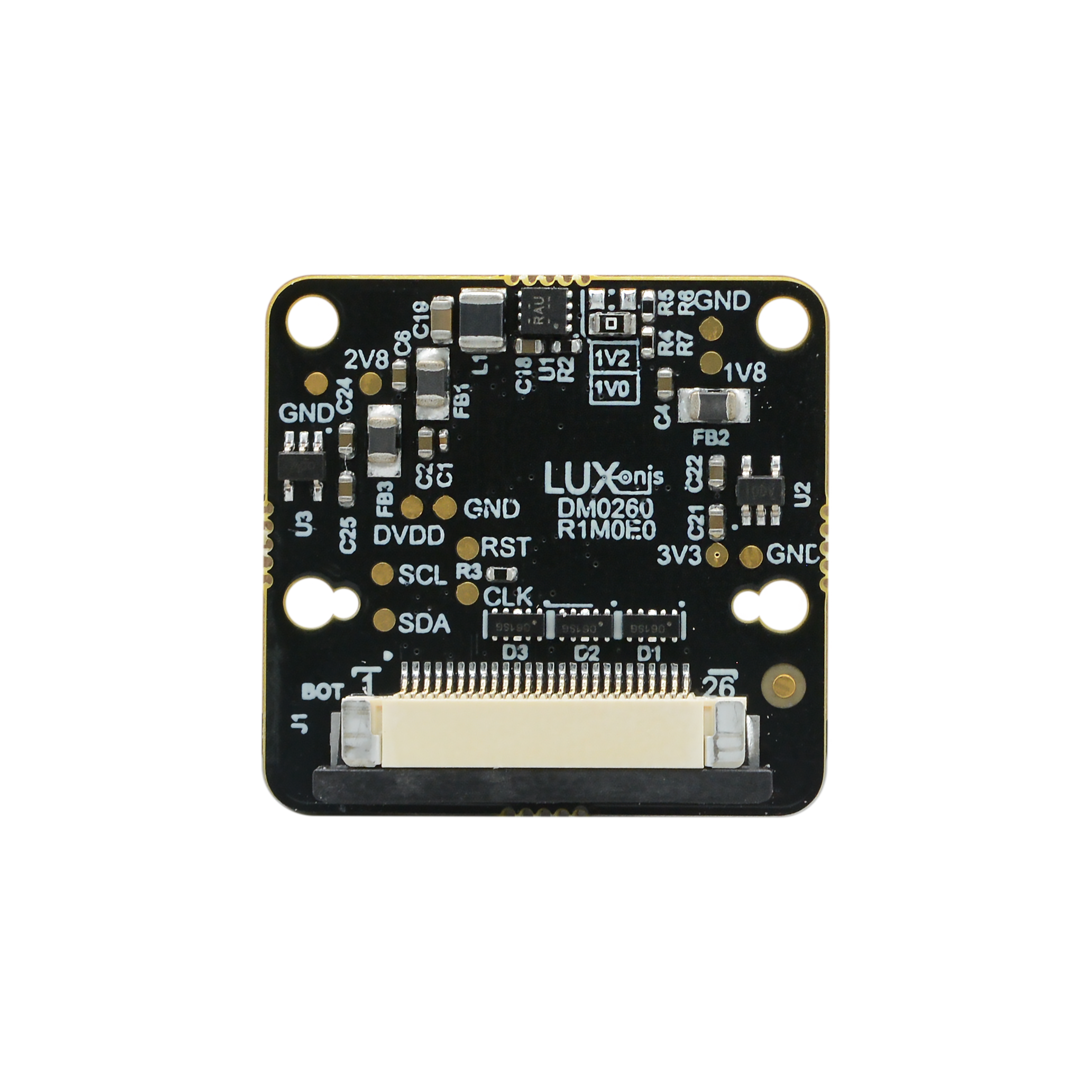

The OAK-FFC IMX582 is a carrier board for the IMX582 camera module. A 26-pin FFC is used to carry 5V power, 4-lane MIPI, I2C, and other control signals between the this camera module and the controller baseboard.
Camera specifications
| Color camera | |
| Sensor | |
| Type | Rolling Shutter |
| DFOV / HFOV / VFOV | 71° / 45° / 55° |
| Resolution | 32MP (5312x6000) |
| Focus | Auto-Focus: 20cm - ∞ |
| Max Framerate | 42 FPS |
| F-number | 1.8 |
| Lens size | 1/2 inch |
| Spectral range | Visible only |
Specifications
Dimensions- Width: 25 mm
- Height: 23.85 mm
- Weight: 3g
- 26 pin 0.5mm FFC interconnect to baseboard
- 30 pin interface to IMX582 camera module
- 4-lane MIPI
- Aux/Control signals to camera module
- 5V power input via FFC
- On-board power generation for camera module
- Design files produced with Altium Designer 20
More information can be found .
Package Includes
- OAK-FFC IMX582 camera module
- Flexible flat cable, 15cm
