Combines high performance and economy, providing all the superpowers offered by RVC2 core and DepthAI API in an affordable package. Won AI and Vision Alliance's in 2022.

Key Features:

• 4 TOPS of processing power
• 13 MP central RGB camera available in auto-focus and fixed-focus variants
• BMI270 IMU, 6-axis sensor combining accelerometer and gyroscope
• USB2 / USB3 for power delivery and communication

<!–--split--–>

Description

Awards:

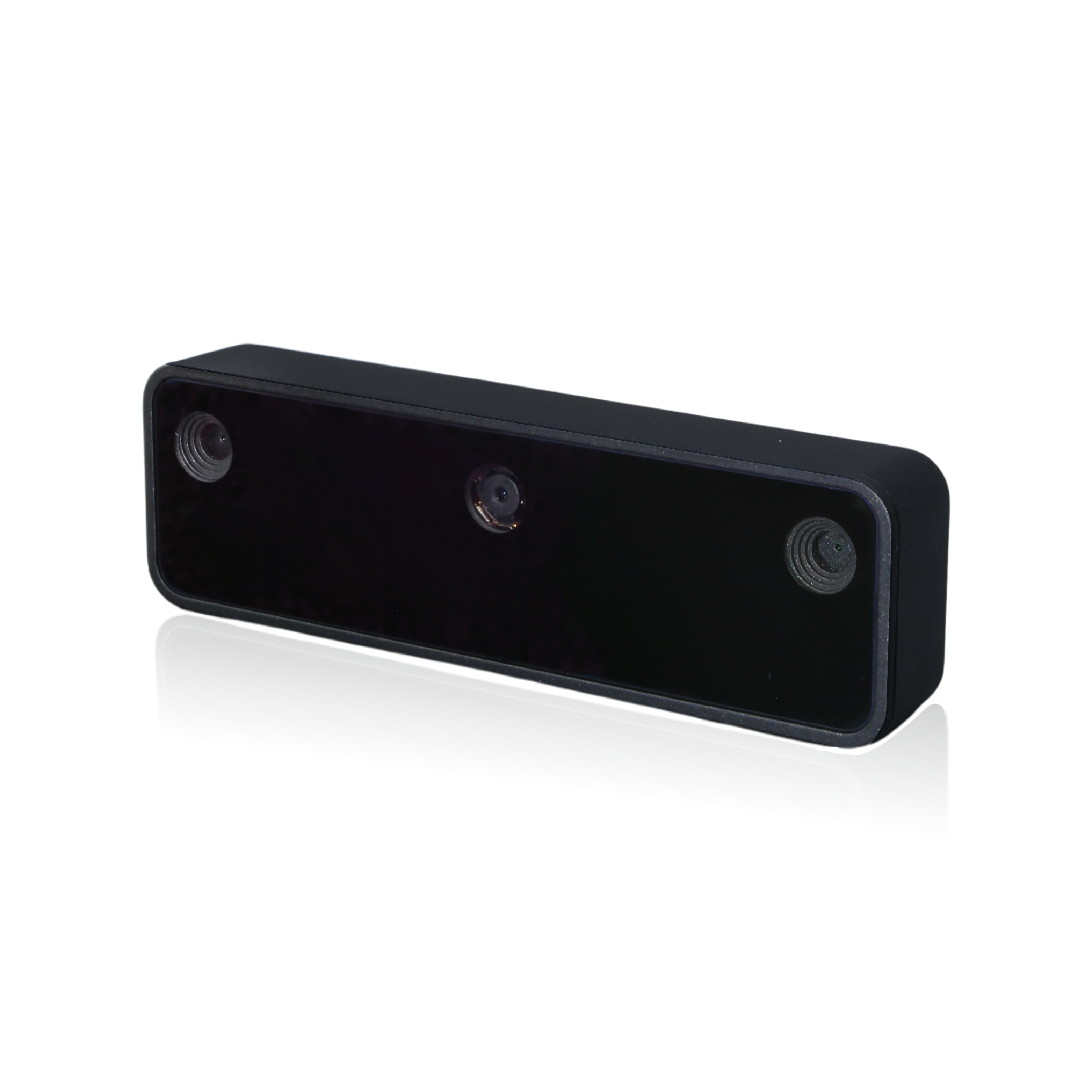

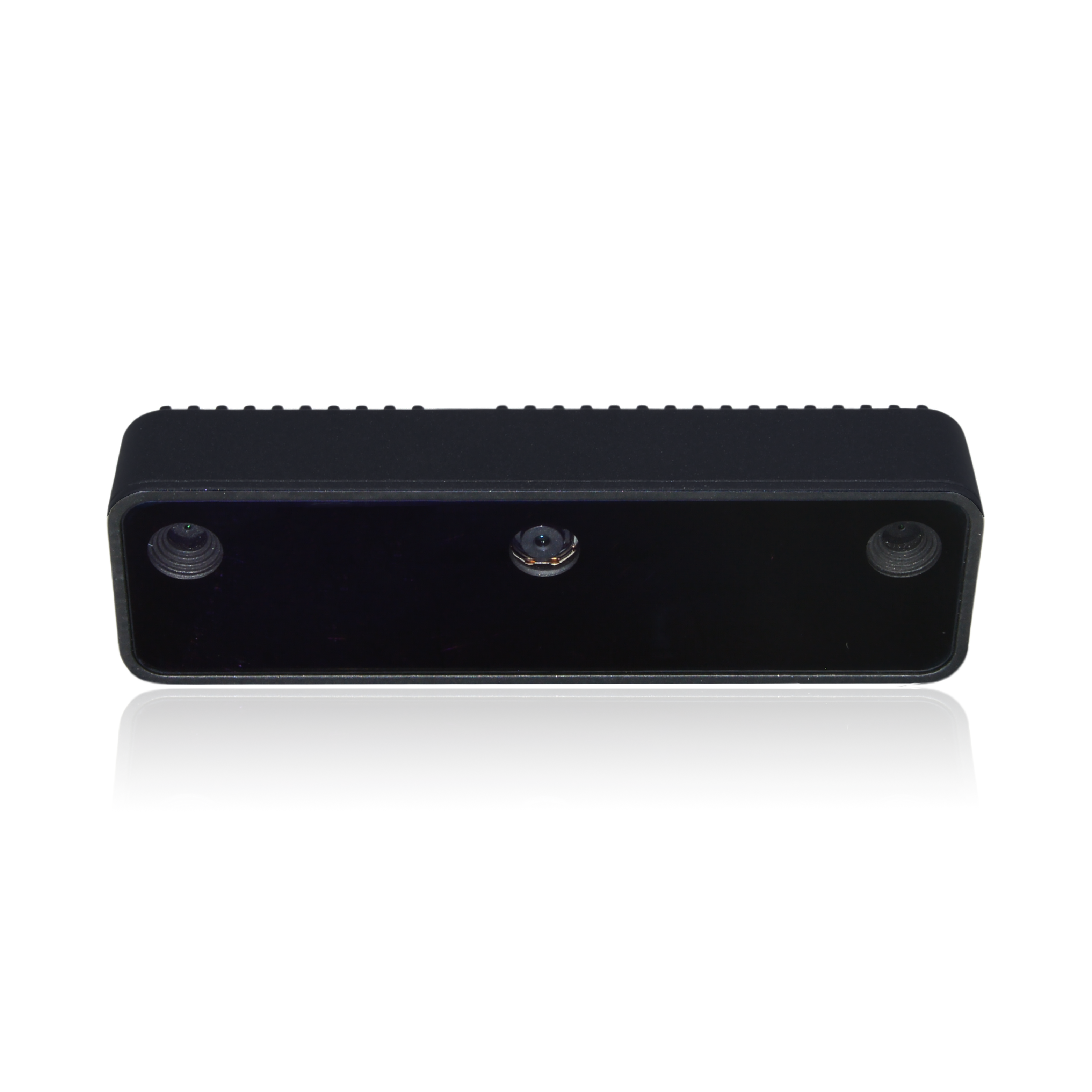

OAK-D Lite is the ultimate camera for robotic vision that perceives the world like a human by combining stereo depth camera and high-resolution color camera with an on-device and capabilities. It uses USB-C for both power and USB3 connectivity.

For a smooth getting started experience with the USB camera, we recommend following .

• 4 TOPS of processing power (1.4 TOPS for AI - )
• Run any AI model, even custom architected/built ones (models need to )
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via node, , . You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Object tracking: 2D and 3D tracking with ObjectTracker node

• Base line: 75 mm
• Ideal depth range: 40cm - 8m. See technical specifications.
• Power consumption: Up to 5W. See technical specifications

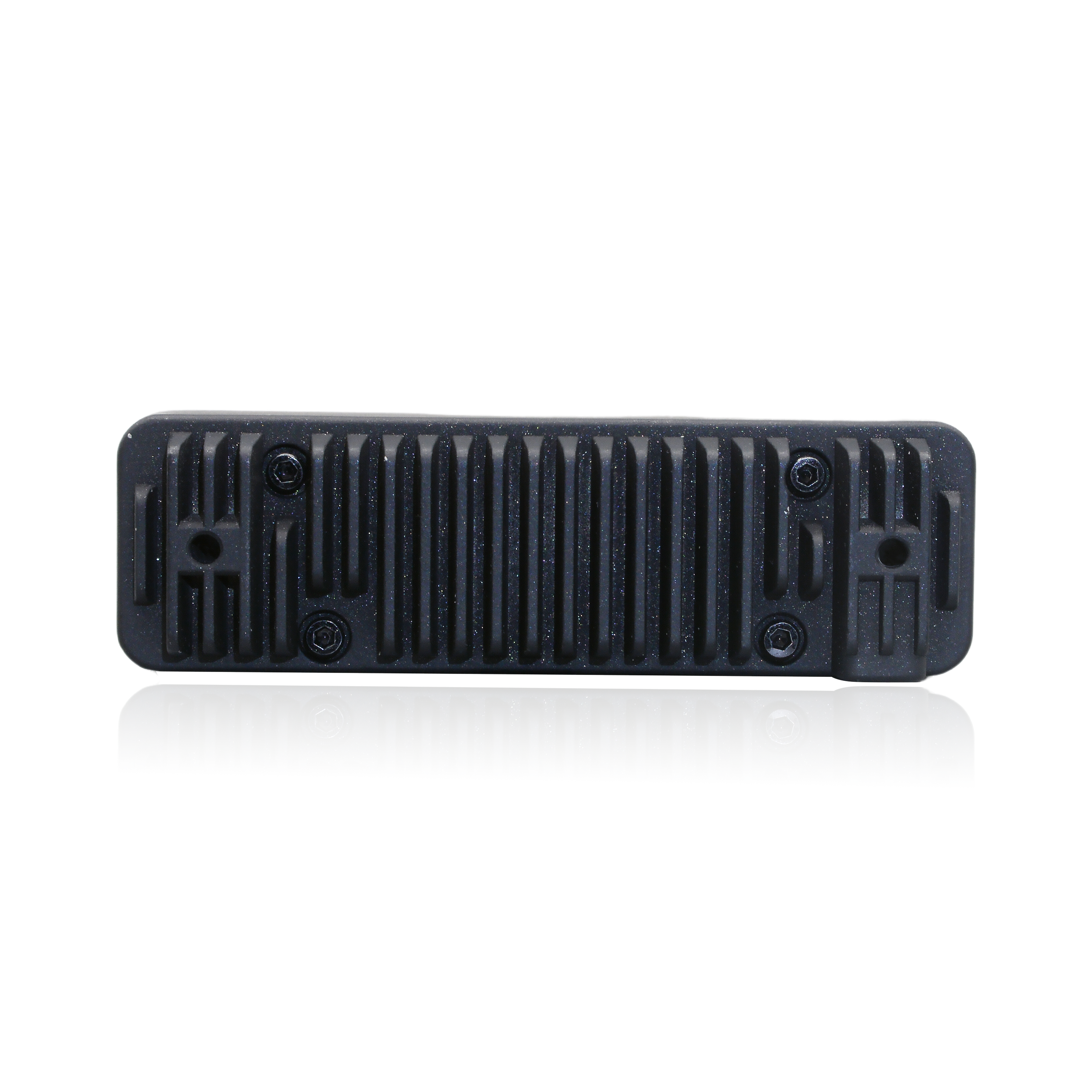

• Industrial grade aluminum housing with Front Gorilla Glass
• 1/4" tripod mount and 75mm M4 Vesa mount

• Dimensions: 91x28x17.5 mm
• Weight: 61g

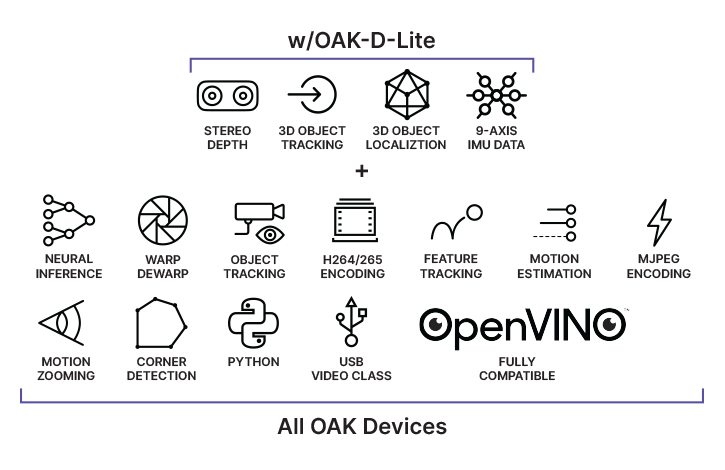

Product Diagram

Technical Specifications

Camera Specifications

The OAK-D Lite is available in two variants: Fixed-Focus and Auto-Focus. These variants differ only in the configuration of the center color camera. The Fixed-Focus variant has the lens fixed in place mechanically, whereas the Auto-Focus has an electromagnet that controls the lens position dynamically. Both variants can clearly see objects 50 cm and beyond.

• Auto-Focus cameras are recommended for close objects between 8 cm to 50 cm of the device (see video). They can also be manually set to a specific focus position utilizing the DepthAI API.
• Fixed-Focus cameras are recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see video).

• For a better sensor: Consider the OAK-D-S2 based on IMX378
• For low-light conditions: Explore our PRO camera line-up

Stereo depth perception

This OAK camera has a baseline of 7.5cm - the distance between the left and the right stereo camera. Minimal and maximal depth perception (MinZ and Max) depends on camera FOV, resolution, and baseline - more information here.

• Ideal depth range: 40cm - 8m
• MinZ: ~20cm (480P, extended), ~35cm (480P)

• 40cm - 3m: below 2% absolute depth error
• 3m - 6m: below 4% absolute depth error
• 6m - 8m: below 6% absolute depth error

Features

This OAK camera has an integrated BMI270, a 6-axis IMU (Inertial Measurement Unit). See IMU node for the API details on how to use it.

Power and connectivity

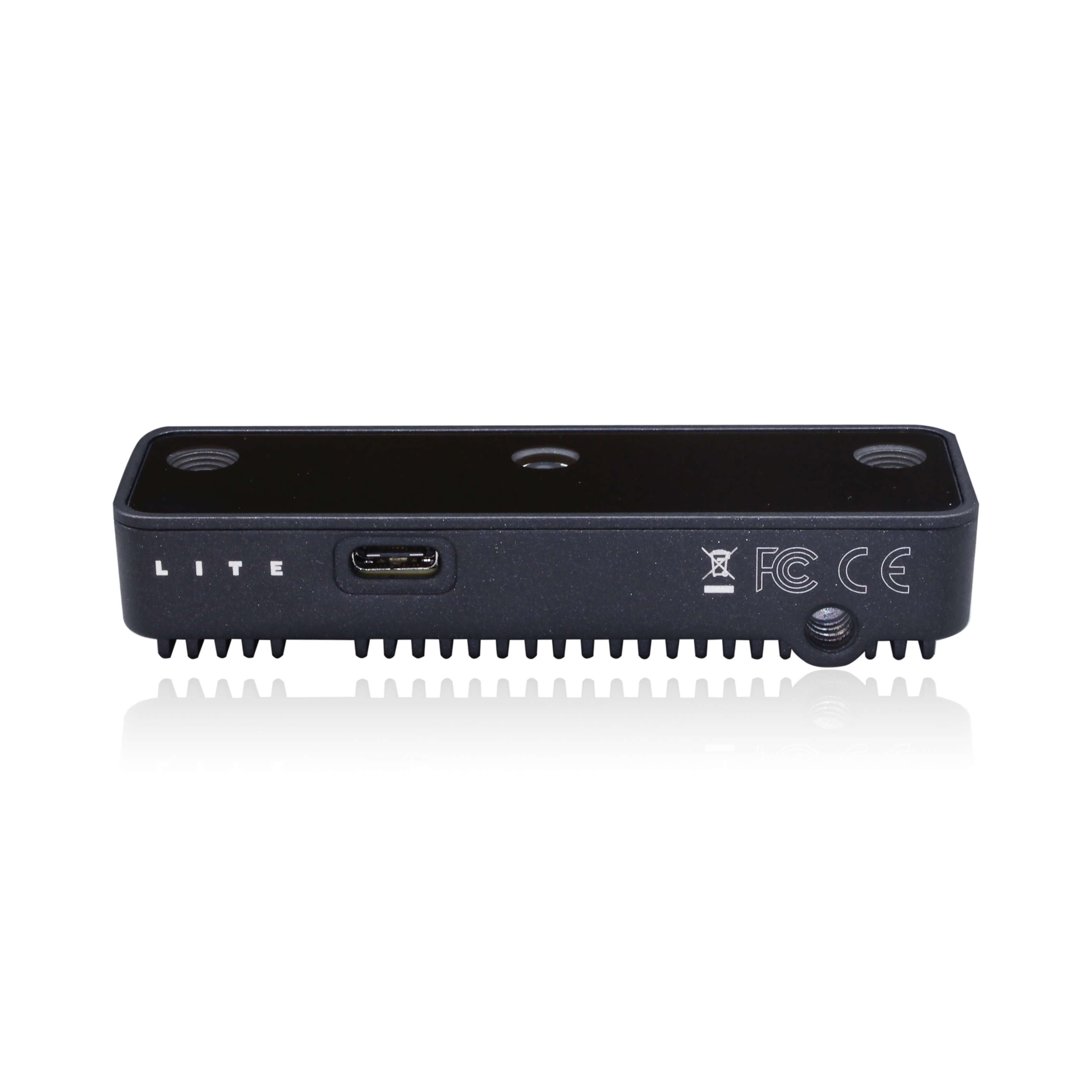

Camera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity.

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption + camera streaming: 2.5W - 3W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Operating characteristics

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operating temperature range documentation.

Package Includes

Package contains:

• OAK-D Lite Camera

Files

1. CE Certificate
2. Datasheet
3. 3D models
