To place an order, please contact us via email at . The minimum order quantity for this item is 100 pieces.

OAK IoT series is now community-supported only and is provided as-is. This means we won’t update it and don’t provide support for it.

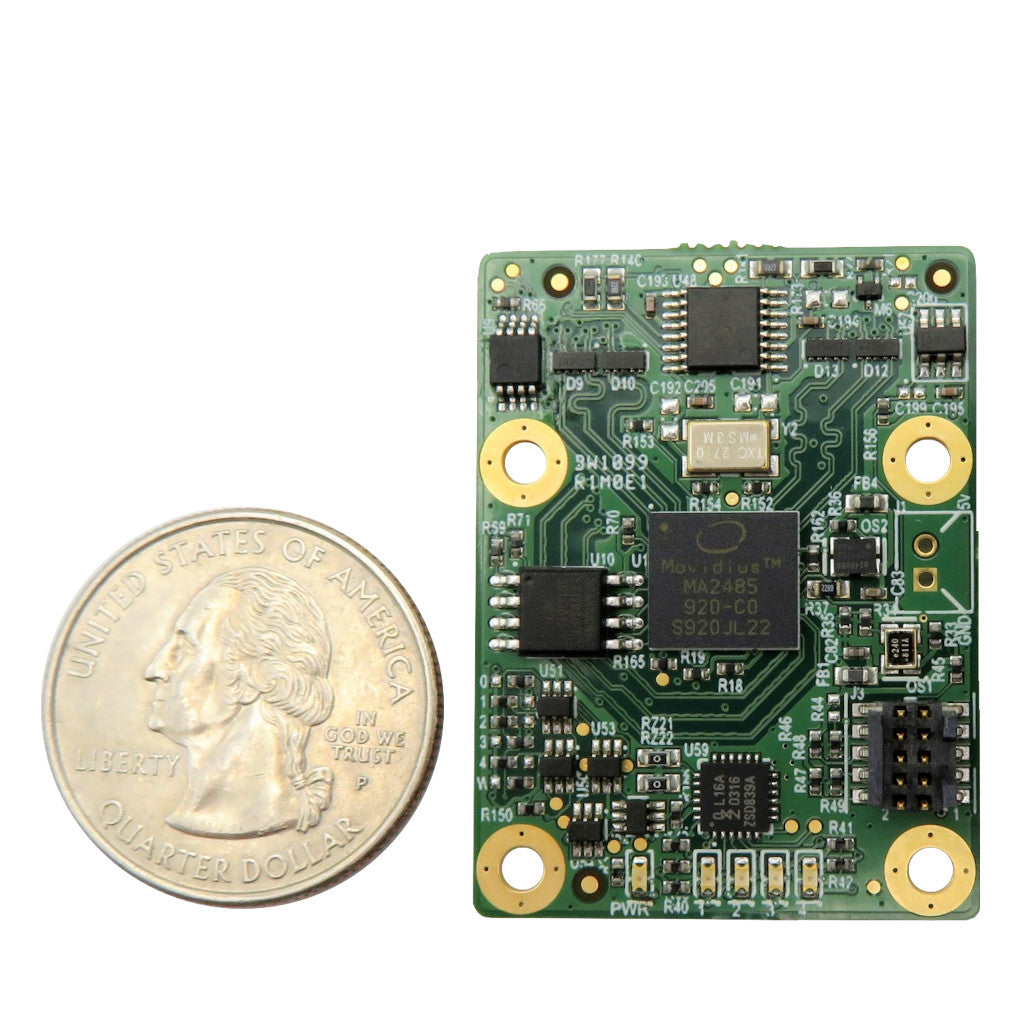

OAK-SoM-IoT is an embedded variant of OAK-SoM that includes a 128MB NOR flash and boot-switch capabilities such that it can be booted over USB (for use with our ) or set to boot out of NOR-flash for communication with microcontrollers over SPI.

The key difference between OAK-SoM-IoT and the standard  is that the latter requires a host processor running Linux, Mac, or Windows to operate, whereas this module can boot out of NOR flash - allowing SPI communication with microcontrollers which may be running no operating system at all (bare metal C or C++ code).

This module is pre-mounted on the .

• All connectivity through a single 100-pin connector (DF40C-100DP-0.4V(51))

• 2x 2-lane MIPI Camera Interface
• 1x 4-lane MIPI Camera Interface
• Quad SPI with 2 dedicated chip-selects
• I²C
• UART
• USB2
• USB3
• Several GPIO (1.8 V and 3.3 V)
• Supports off-board eMMC or SD Card
• On-board NOR boot Flash (optional)
• On-board EEPROM (optional)
• All power regulation, clock generation, etc. on module

<!–--split--–>

Description

Package includes:

• OAK-SoM (5pcs, box)

• System on Module - 5 pcs
• OAK-SoM (25 pcs, tray)
• System on Module - 25 pcs
