Series 2 device incorporating wide field of view camera modules. Well suited for all the scenarios that require coverage of larger areas.

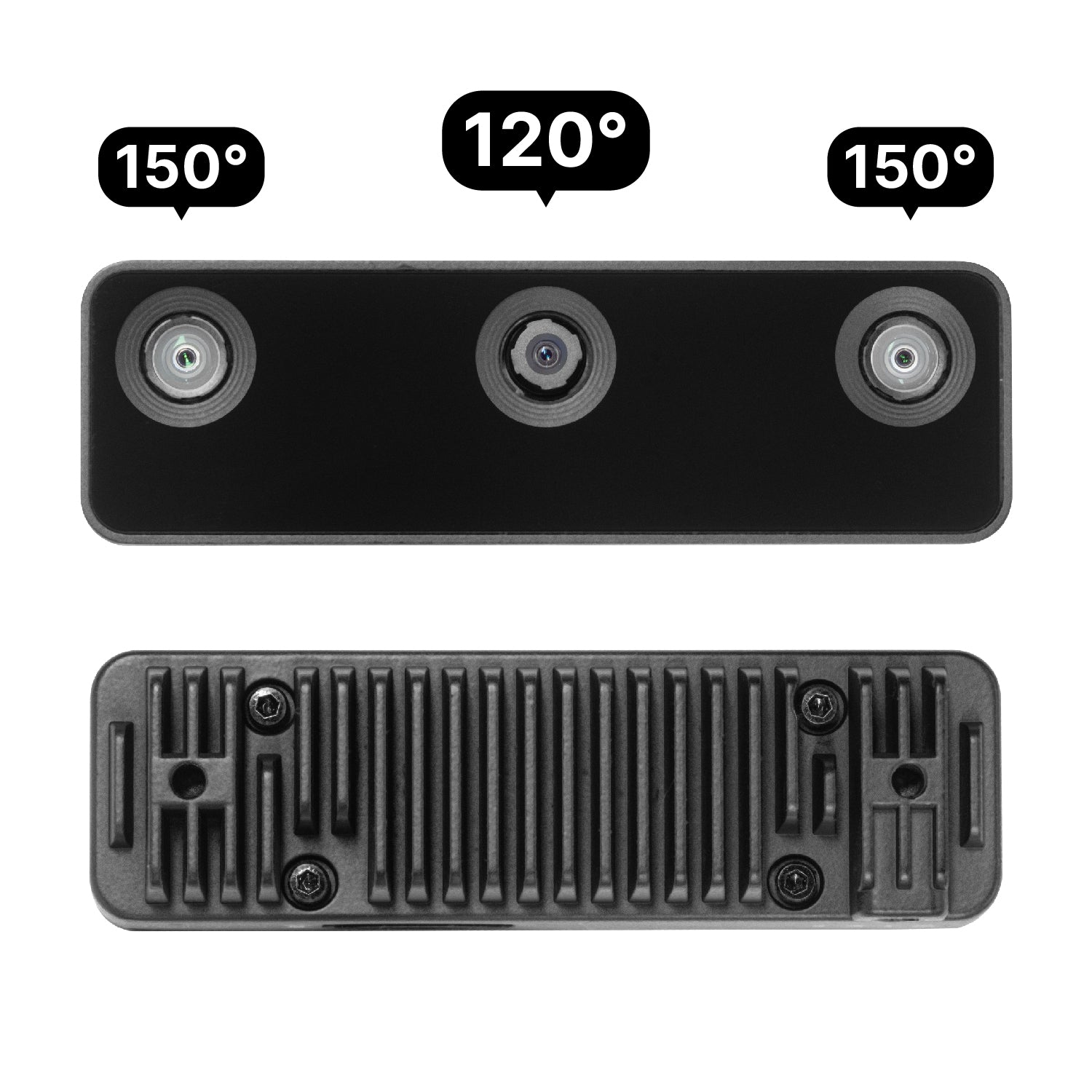

• 150° DFOV for stereo pair, 12 MP RGB camera module with 120° DFOV
• 4 TOPS of processing power (1.4 TOPS for AI)
• Run any AI model, even custom architectured/built ones
• Rugged IP66 rated enclosure (please see the technical specifications for details)
• USB2 / USB3 for power delivery and communication

<!–--split--–>

Description

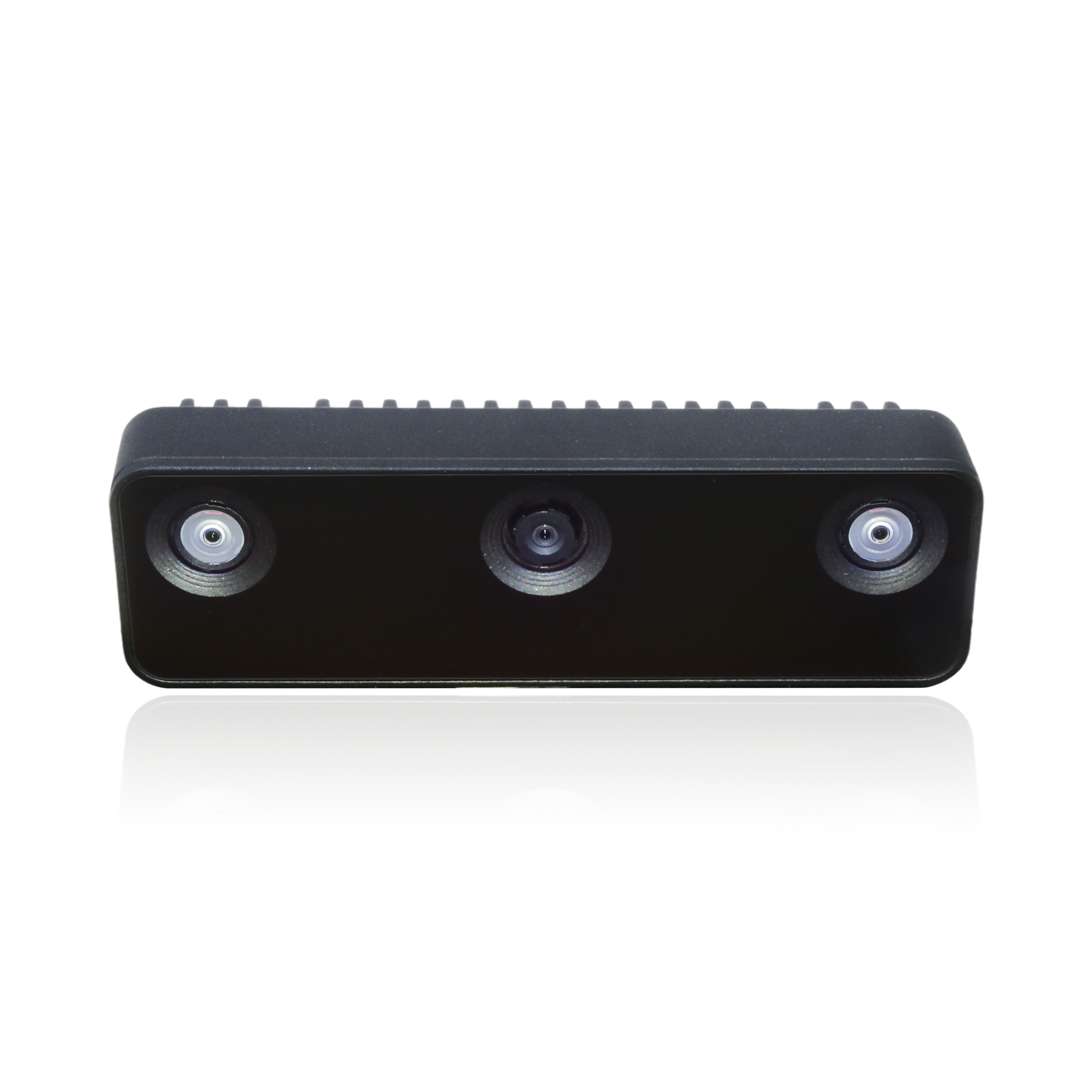

OAK-D W is the ultimate camera for robotic vision that perceives the world like a human by combining a wide stereo depth camera and wide high-resolution color camera with an on-device and capabilities. It uses USB-C for both power and USB3 connectivity.

Wide FOV allows you to capture more area in one shot, which can be especially useful for:

• Multi-camera setup, to reduce the number of cameras needed to cover the whole area
• AMRs, to cover larger area and to get more features for localization and 3D mapping - see for more information
• Object tracking/counting, for example vehicle or people counting over a larger area

For a smooth getting started experience with the USB camera, we recommend following .

• 4 TOPS of processing power (1.4 TOPS for AI - )
• Run any AI model, even custom architected/built ones (models need to )
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via node, , . You can also
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Object tracking: 2D and 3D tracking with ObjectTracker node

• Base line: 75 mm
• Ideal depth range: 40cm - 6m. See technical specifications.
• Power consumption: Up to 5W. See technical specifications

• Industrial grade aluminum housing with Front Gorilla Glass

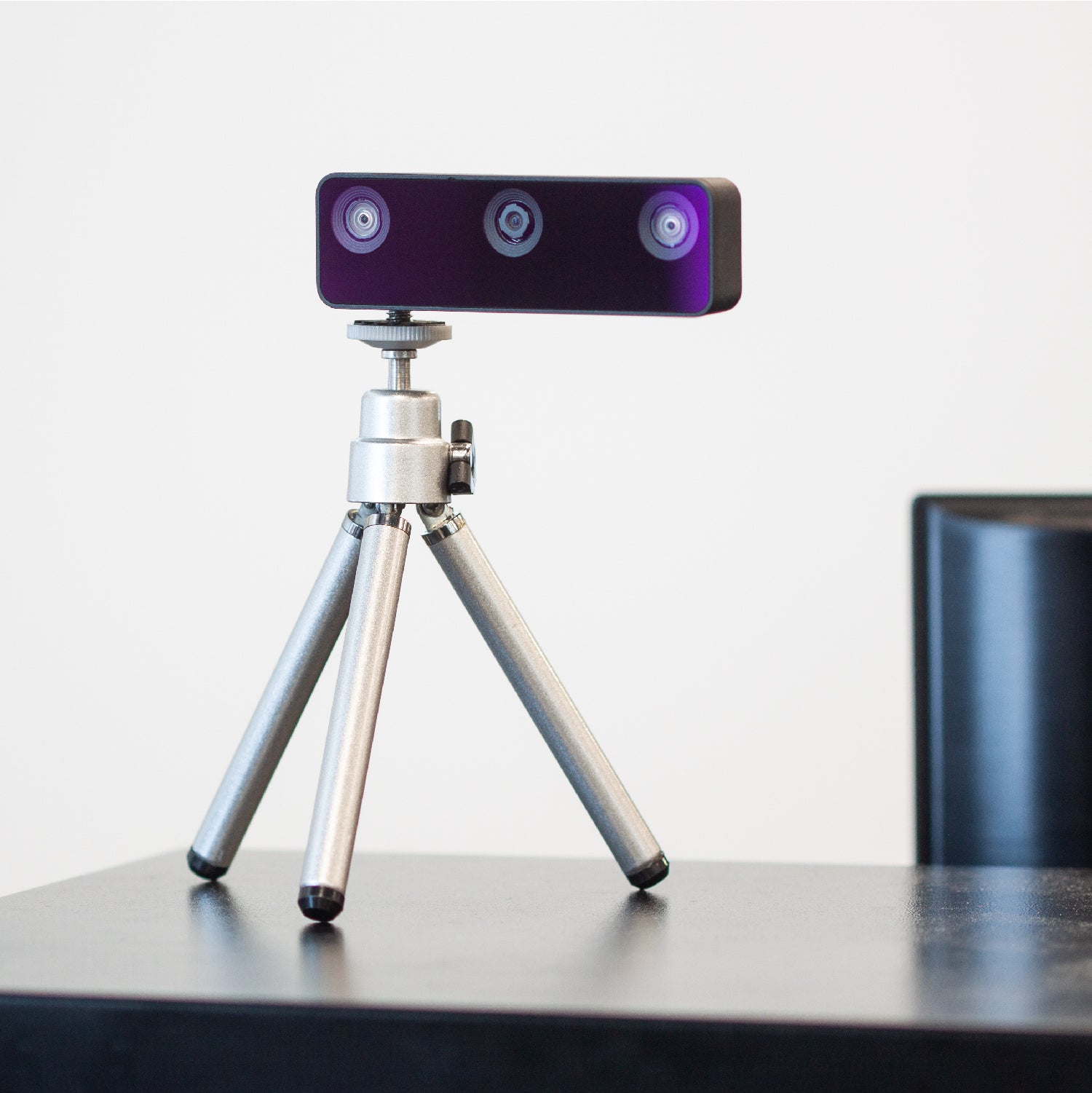

• 1/4" tripod mount and 75mm M4 Vesa mount

• Dimensions: 97x29.5x22.9 mm
• Weight: 91g

Product Diagram

Technical Specifications

Camera Specifications

This camera is offered in two variants: First has 12MP IMX378 sensor. Second version is using special 1MP 120FP global shutter sensor OV9782.

Do you need better low light performance or more precise depth perception? In this case you can upgrade to OAK-D-Pro W with IR dot projector for active stereo and IR illumination for low light conditions.

Sensor specifications:

Stereo depth perception

This OAK camera has a baseline of 7.5cm - the distance between the left and the right stereo camera. Minimal and maximal depth perception (MinZ and Max) depends on camera FOV, resolution, and baseline - more information here.

• Ideal range: 40cm - 6m
• MinZ: ~20cm (400P OR 800P, extended), ~37cm (800P)
• MaxZ: ~10 meters with a variance of 10%

• below 3.5m: below 2% absolute depth error
• 3.5m - 6.5m: below 4% absolute depth error
• 6.5m - 9m: below 6% absolute depth error

Features

This OAK camera has an integrated BNO085, a 9-axis IMU (Inertial Measurement Unit). See IMU node for the API details on how to use it.

The camera is equipped with a single state status LED that indicates when the pipeline is running. Depending on the specific camera model and production batch, the LED may be either green or yellow.

Power and connectivity

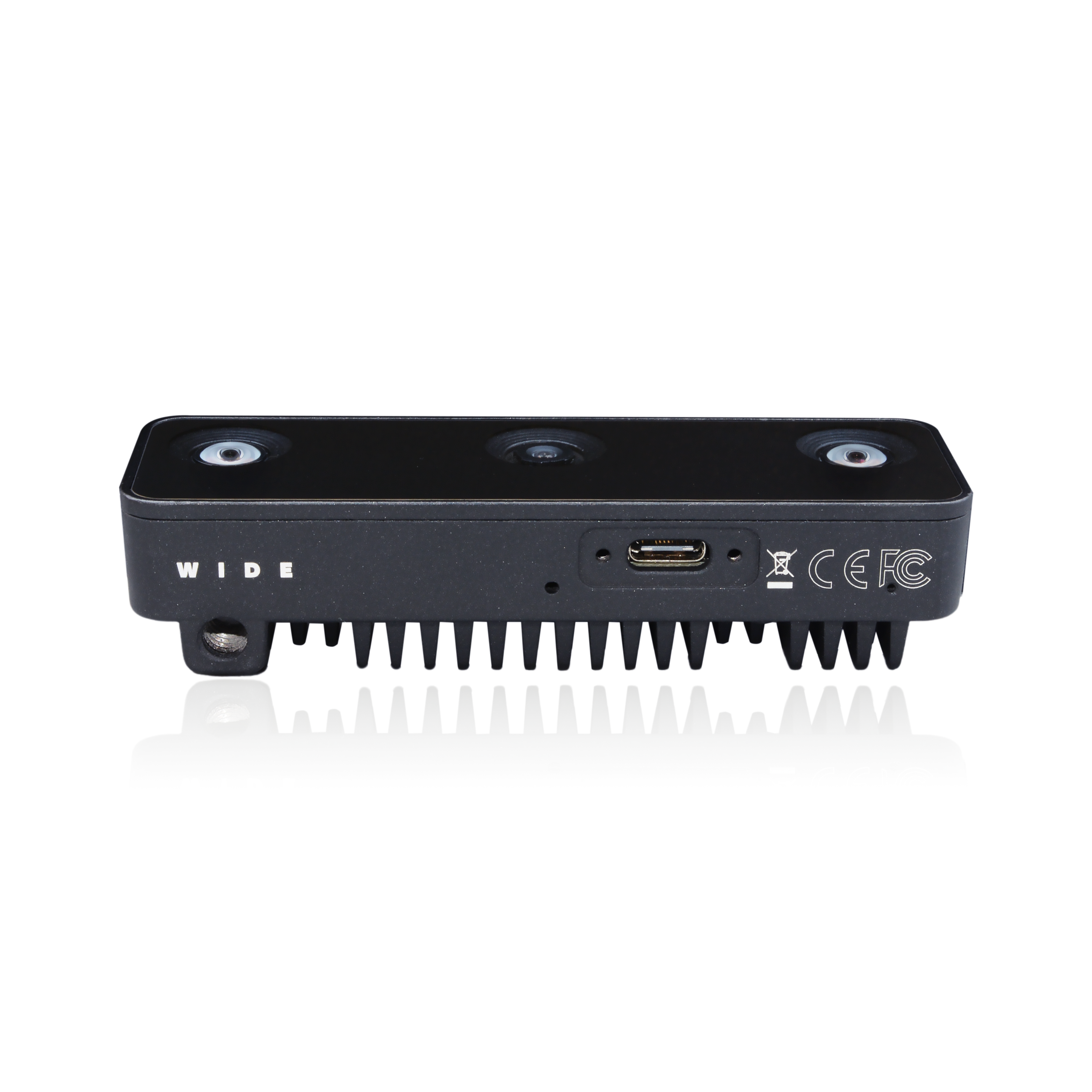

Camera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity.

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption + camera streaming: 2.5W - 3W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Operating characteristics

This camera comes with an IP66-rated enclosure. Please note that using an included screw-locking USB cable is required to maintain water resistance.
More details can be found here.

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operating temperature range documentation.

Our cameras are tested for vibration tolerance according to the EN 60068-2-6:2008 standard. More information about the testing you can find here.

Package Includes

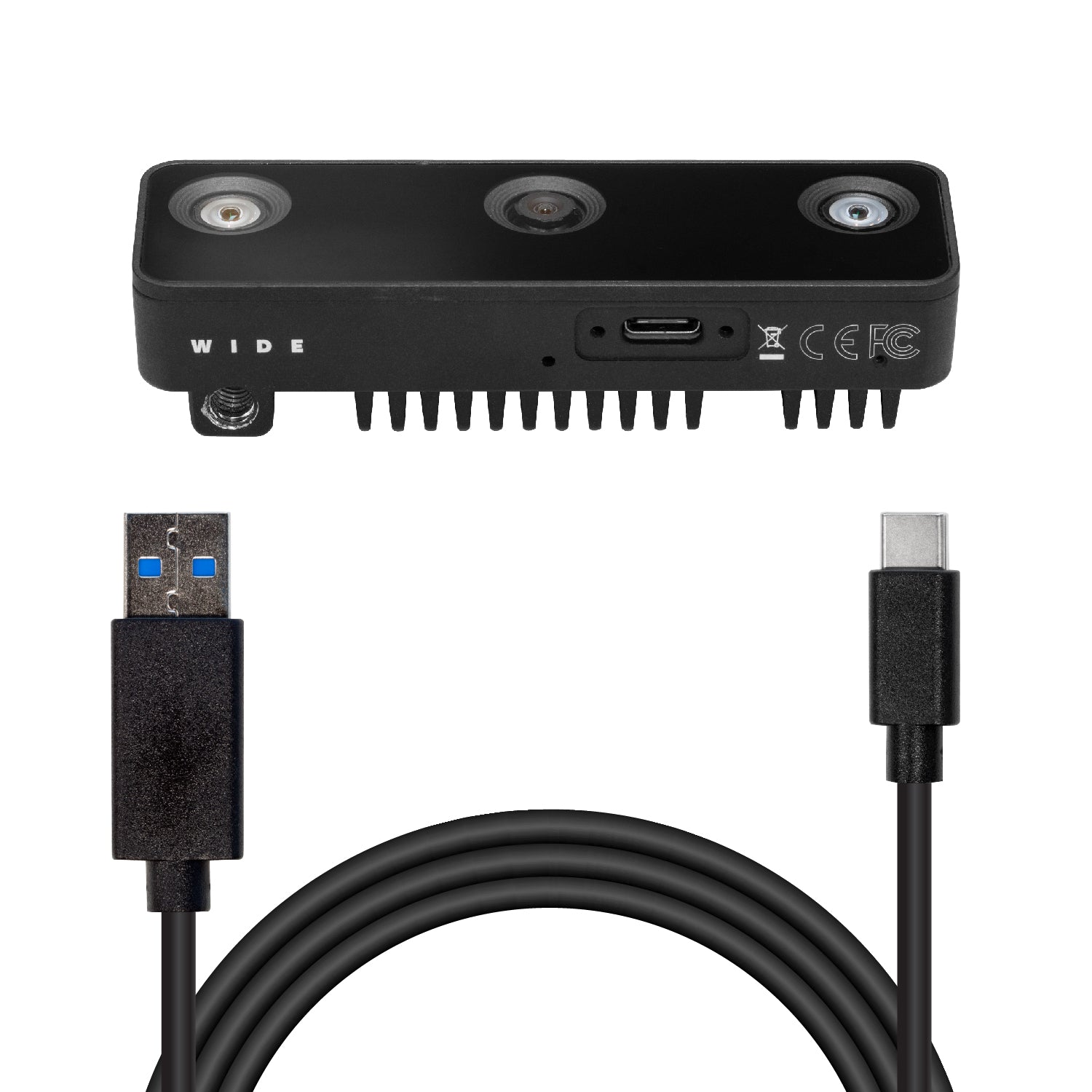

The package contains:

• OAK-D W camera
• Cable USB-CA-1m with dual-screw locking mechanism

Files

1. Datasheet
2. CE Certificate
3. RoHS3 Compliance Certificate
4. Vibration Tolerance
5. 3D models
