We will require an NDA before delivery.

The OAK4 SoM features the and a octa-core ARM CPU.  It is ideal for use in industrial automation, robotics, and security systems.

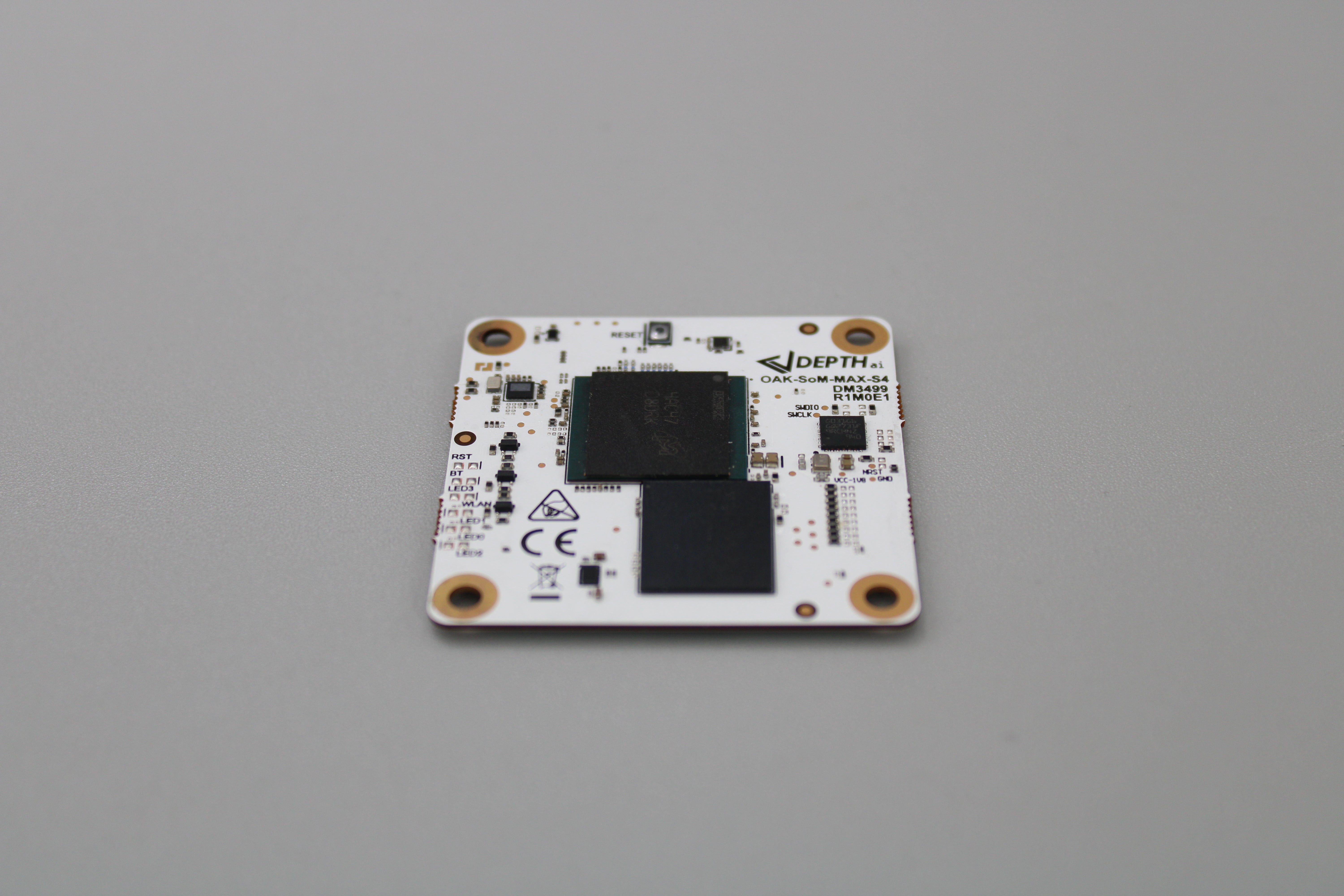

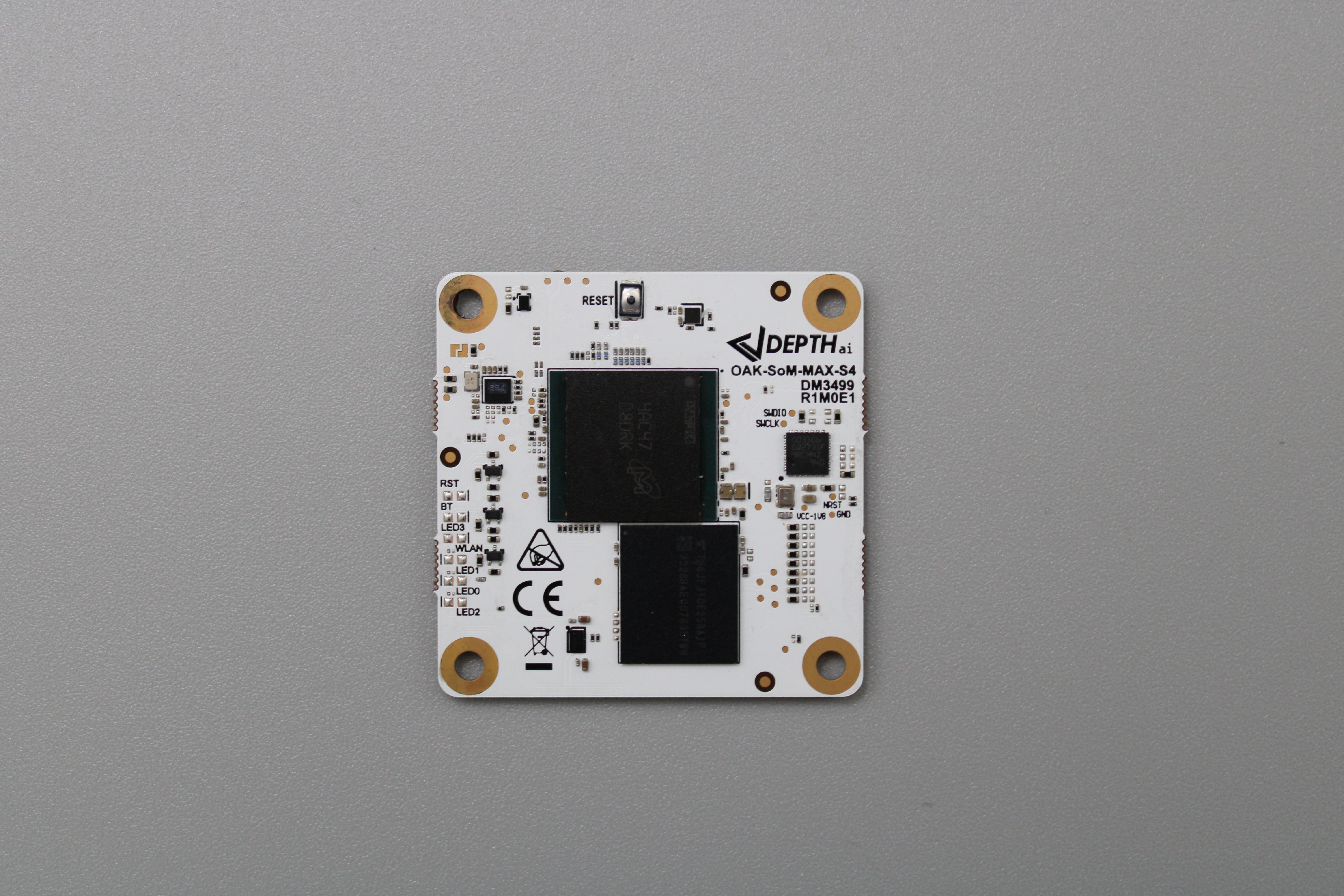

OAK4 System on Module (SoM) allows integration into top-level systems with a need for a high-performance, real-time edge AI and depth perception.

Specifications:

• Interfaces with the system through three 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
• Connectors: 3x 100-pin mezzanine connector
• MIPI lines: 2x 4-lane and 4x 2-lane MIPI lines. Max 5 concurrent streams.

• RAM: 8GB
• Storage: 128GB
• Multiple GPIOs, I2C/I3C, SPI, UART interfaces
• Supporting SD-card
• 2x PCIe (eg. for Ethernet chip)
• FSYNC/STROBE outputs (from STM MCU)
• DisplayPort (untested)
• USB 3.2 Gen 2


<!–--split--–>

Main features:

OAK4 SoM is built on top of the .

• Octa-core ARM CPU running Linux (Kernel 5.15)
• : 48 INT8, 12 FP16 TOPS
• : Stereo depth, frame warp engine, optical flow, feature detection, description matching, template matching
• : 5 concurrent camera streams, HDR, EIS, 3A, up to 3x 8K @ 30FPS
• Encoding: 4K @ 240FPS decoding, 4K @ 120FPS encoding for H264 and H265. Decoding also supported for VP9, AV1
• Dimensions: 40x40x5 mm
• Weight: 5g

Package includes

• OAK4 SoM
• Heatsink

• Screws
