OAK 4 D PRO is the most advanced stereo vision and edge inference camera we have produced. A true standalone device running Luxonis OS, the OAK 4 D Pro combines an elegant design, industrial grade materials, and industry leading compute in a single unit.
- 8-core CPU, 8GB RAM, 128GB of storage
- 48 TOPs for AI inferencing
- 48MP RGB camera
- Active stereo: IR dot projector for improved stereo accuracy
- Night vision: IR illumination LED for low-light or no-light environments
- Microphone
- Both USB3 and PoE for power and communication
- Status LED
- IP67 Rating
- Running Linux based Luxonis OS
- 9-axis IMU
<!–--split--–>
Description
OAK 4 D Pro is the ultimate edge inference, stereo vision camera. This standalone device is perfect for robotic vision and automated systems, combining active stereo depth camera and high-resolution color camera with on-device Neural Network inferencing and Computer Vision capabilities.
Pro version is advised for application that require high-quality and reliable stereo depth perception in any kind of environment, including low-light, and texture-less scenes.
Key features
RVC4 on-board features:- 8-core ARM CPU (QC Snapdragon 8-series), 8GB RAM, 128GB of storage
- Operated by Luxonis OS, based on Linux kernel 5.15
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- AI: 48 TOPs (INT8) and 12 TOPs (FP16) operations
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- Object tracking: 2D and 3D tracking with ObjectTracker node
Specifications:
- Base line: 75 mm
- Ideal depth range: 70 cm - 12 m.
- Power consumption: up to 25W
- Housing:
- Industrial grade aluminum with Front Gorilla Glass
- Water resistance enclosure with IP67 rating - Mounts:
- 1/4" tripod mount
- 75mm M4 Vesa mount on back and bottom cover
- Dimensions: 143.5 x 42.5 x 67.3 mm
- Weight:
- 674g
Technical Specifications
OAK 4 D PRO uses 48MP sensor (IMX586) as the main RGB camera.
Sensor specification:
| Auto Focus | Fixed Focus | Wide | Stereo Pair | Stereo Pair - Wide |
|---|
| Sensor | IMX586 (PY237) | IMX586 (PYXXX) | IMX586 (PY262) | OV9282 (PY238) | OV9282 (PY265) |
| DFOV | 82.4˚ | 82.4˚ | 120.0˚ | 84.5° | 149.2° |
| Resolution | 48MP ( 8000x6000) | 48MP ( 8000x6000) | 48MP ( 8000x6000) | 1MP (1280x800) | 1MP (1280x800) |
| Focus | AF | FF | FF | FF | FF |
| Max Framerate | 30 FPS | 30 FPS | 30 FPS | 60 FPS | 120 FPS |
| Spectral range | Visible | Visible | Visible | Visible + 940 nm | Visible + 940 nm |
| Shutter Type | Rolling | Rolling | Rolling | Global | Global |
| Sensor size | 1/2" | 1/2" | 1/2" | 1/4" | 1/4" |
| F-number | 1.79 ± 5% | 1.79 ± 5% | 1.79 ± 5% | 2.0 ± 5% | 2.0 ± 5% |
| Effective Focal Length | 4.74mm | 4.74mm | 4.74mm | 2.35mm | 1.69mm |
| Pixel size | 0.8µm | 0.8µm | 0.8µm | 3.0µm | 3.0µm |
Stereo depth perception
This OAK camera has a baseline of 7.5cm - the distance between the left and the right stereo camera. Minimal and maximal depth perception (MinZ and Max) depends on camera FOV, resolution, and baseline.
- Ideal depth range: 70cm - 12m
- MinZ: ~20cm (400P and extended), ~35cm (400P OR 800P, extended), ~70cm (800P)
Depth accuracy- below 4m: below 2% absolute depth error
- 4m - 7m: below 4% absolute depth error
- 7m - 10m: below 6% absolute depth error
IR perception
This product is classified as a Class 1 Laser Product under the EN/IEC 60825-1, Edition 3 (2014) internationally.
Active stereo- Uses Himax Dot-Pattern Infrared Illuminator
- IR dot projector improves depth perception, especially for low-visual-interest surfaces by projecting thousands of IR dots to the scene.
Night vision- IR illumination LED enables running your AI and CV algorithms in low-light or no-light environments
Connectivity
Power-over-Ethernet (PoE)The base board offers full 802.3at, Class 3 PoE compliance with 2.5GBASE-T speeds (up to 2.5Gbps, depending on the network infrastructure). A PoE switch is recommended to power the device and utilize the full potential of PoE connectivity.

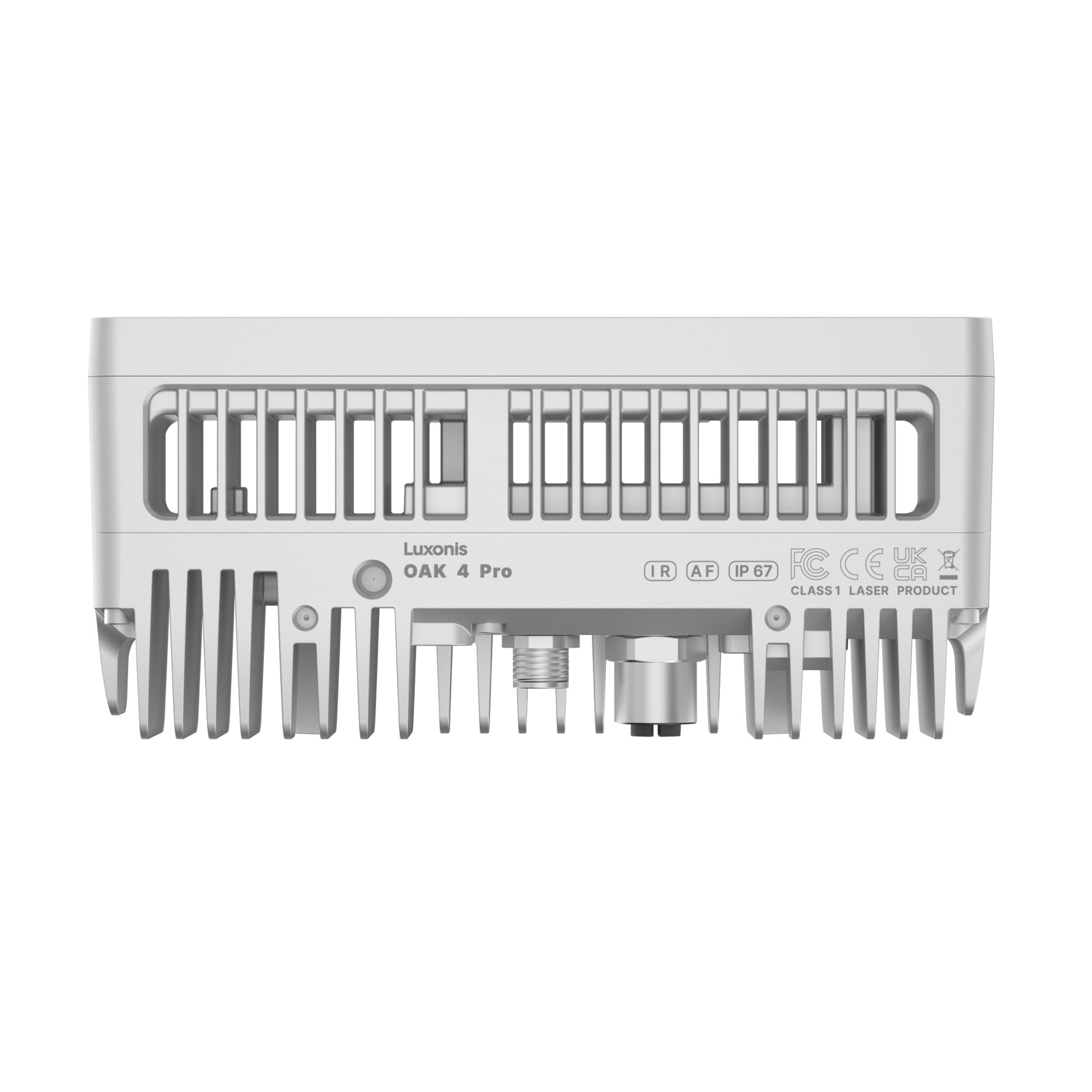

M12 PoE connector is used for power and 2.5GBit data transfer. Additionally, there's an M8 connector for IO connectivity; USB2 (D+, D-), camera IOs (FSIN, STROBE), power, and 2x GPIO (can be used for UART). Cap for M8 is included when connector is not used to ensure water resistance.
Camera also offers USB-C (USB 3.2 Gen2, 10 Gbps) as an option for power and connectivity.
You can also combine both approaches.
Operating characteristics
Water resistanceThis camera is shipped with IP67 rated enclosure.
Power consumption
1.5W to 25W
Operating temperature
-20 to 50C
Vibration tolerances
EN 60068-2-6:2008 and ISO 15998:2008 Clause 7.2.3 Table 1
Package Includes
1 OAK 4 D ProM12 plug to RJ45 cable, 2m
Files
- (downloads zipped STEP file)
