OAK-1 MAX is a 32MP AI camera that features on-device and capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks.
Key Features:
- 32MP central RGB camera
- 4 TOPS of processing power (1.4 TOPS for AI)
- Dimensions: 36x54.5x27.8 mm; Weight: 53.1g
- USB2 / USB3 for power delivery and communication
<!–--split--–>
Description
The OAK-1 MAX is a 32MP AI camera that features on-device and capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.
For a smooth getting started experience with the USB camera, we recommend following .
RVC2 architecture on-board features:- 4 TOPS of processing power (1.4 TOPS for AI - )
- Run any AI model, even custom architectured/built ones (models need to )
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via node, , . You can also run custom CV functions
- Object tracking: 2D tracking with ObjectTracker node
- Power consumption up to 5W. For more information check the technical specification.

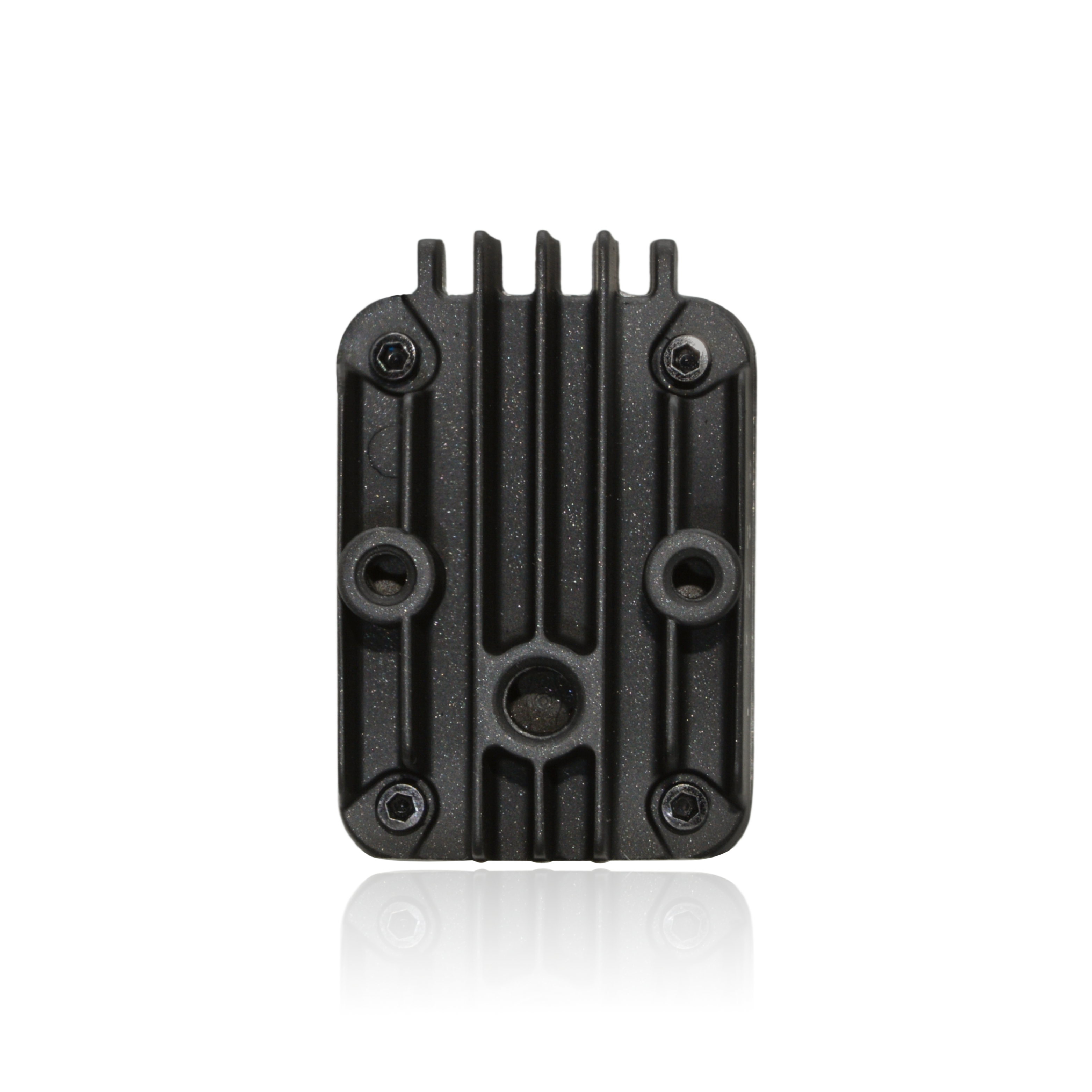

- Industrial grade aluminum housing with Front Gorilla Glass
- 1/4" tripod mount

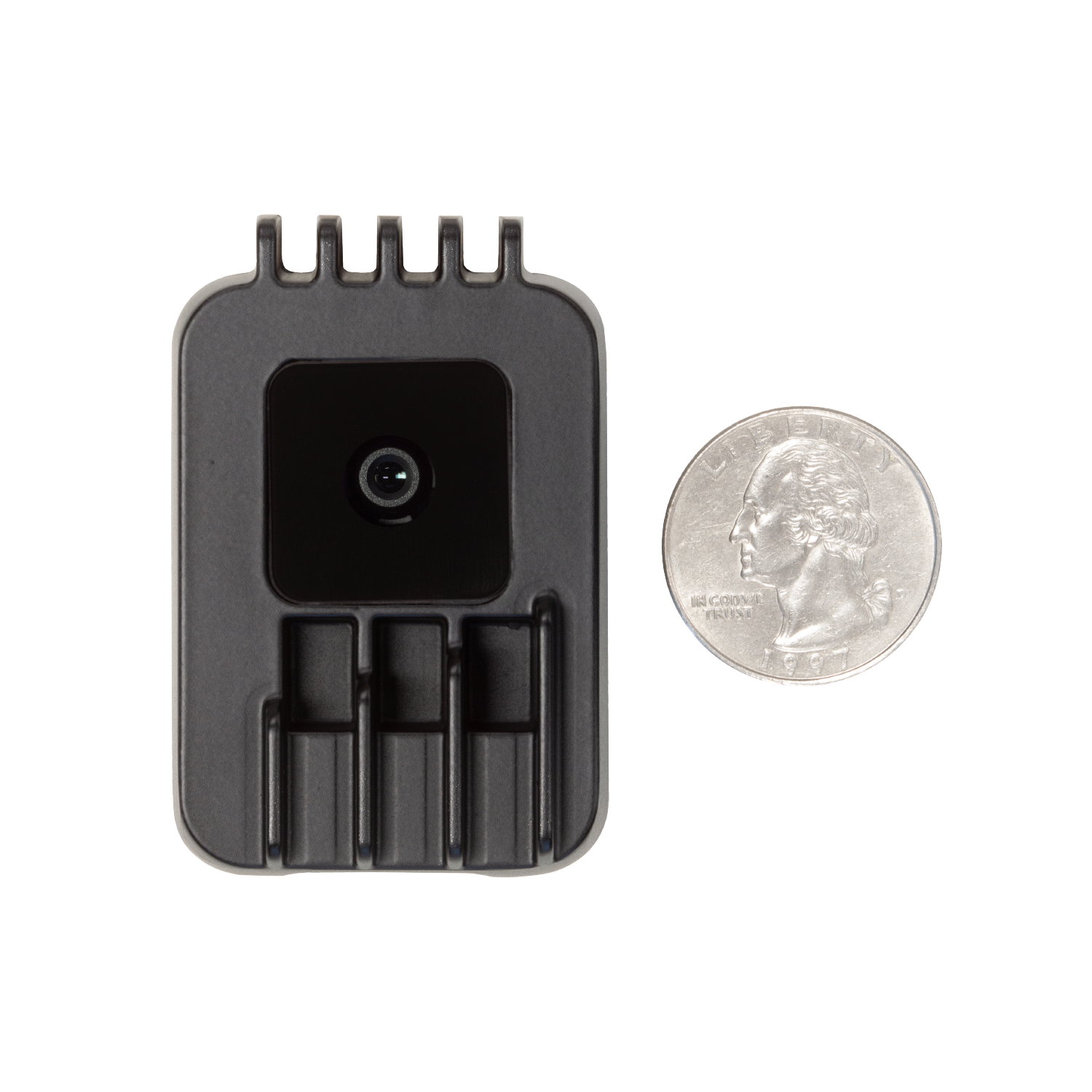

- Dimensions: 36x54.5x27.8 mm
- Weight: 53.1g
Product Diagram
Technical Specifications
Camera Specifications
OAK-1-MAX uses 32MP IMX582 sensor with HDR support.Sensor Specifications
| Color camera | |
|---|---|
| Sensor | IMX582 |
| DFOV / HFOV / VFOV | 71° / 45° / 55° |
| Resolution | 32MP (5312x6000) |
| Focus | Auto-Focus: 20cm - ∞ |
| Max Framerate | 42 FPS(4K), 10FPS full res. |
| Spectral range | Visible only |
| Shutter Type | Rolling |
| Sensor size | 1/2" |
| F-number | 2.2 ± 5% | Effective Focal Length | 4.74mm |
| Pixel size | 0.8µm |
Power and connectivity
ConnectivityCamera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity.
Power consumptionMost of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:
- Base consumption + camera streaming: 2.5W - 3W
- AI subsystem consumption: Up to 1W
- Stereo depth pipeline subsystem: Up to 0.5W
- Video Encoder subsystem: Up to 0.5W
So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.
Operating characteristics
TemperatureThe ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operating temperature range documentation.
Package Includes
The package contains:
- OAK-1-MAX camera
- Cable USB-CA-1m
- Cleaning cloth
