Recently introduced model combining OAK-1 PoE body (and IP67 rating) with a new range of applications brought about by wide field of view camera.

• Either 120° or 150° DFOV depending on variant chosen
• Rugged IP67 rated enclosure
• 4 TOPS of processing power
• RJ45 for power delivery and communication

<!–--split--–>

Description

OAK-1 W PoE is an 12MP AI camera that features on-device and capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses PoE for both power and GigE connectivity.

Wide FOV allows you to capture more area in one shot, which can be especially useful for:

• Multi-camera setup, to reduce the number of cameras needed to cover the whole area
• AMRs, to cover larger area and to get more features for localization and 3D mapping - see for more information
• Object tracking/counting, for example vehicle or people counting over a larger area

PoE connection allows cameras to communicate to other computers via networking protocols (, UDP, , , etc.). As our PoE models feature device flash memory, you can also run your programs in . OAK PoE cameras are housed in an rugged, IP-rated enclosure, which is required for industrial and outdoor use.

We suggest following as the first steps after installation.

• 4 TOPS of processing power (1.4 TOPS for AI - )
• Run any AI model, even custom architectured/built ones (models need to )
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Object tracking: 2D tracking with ObjectTracker node

• 16GB eMMC internal storage
• Power consumption up to 5.5W. For more information check the technical specification.

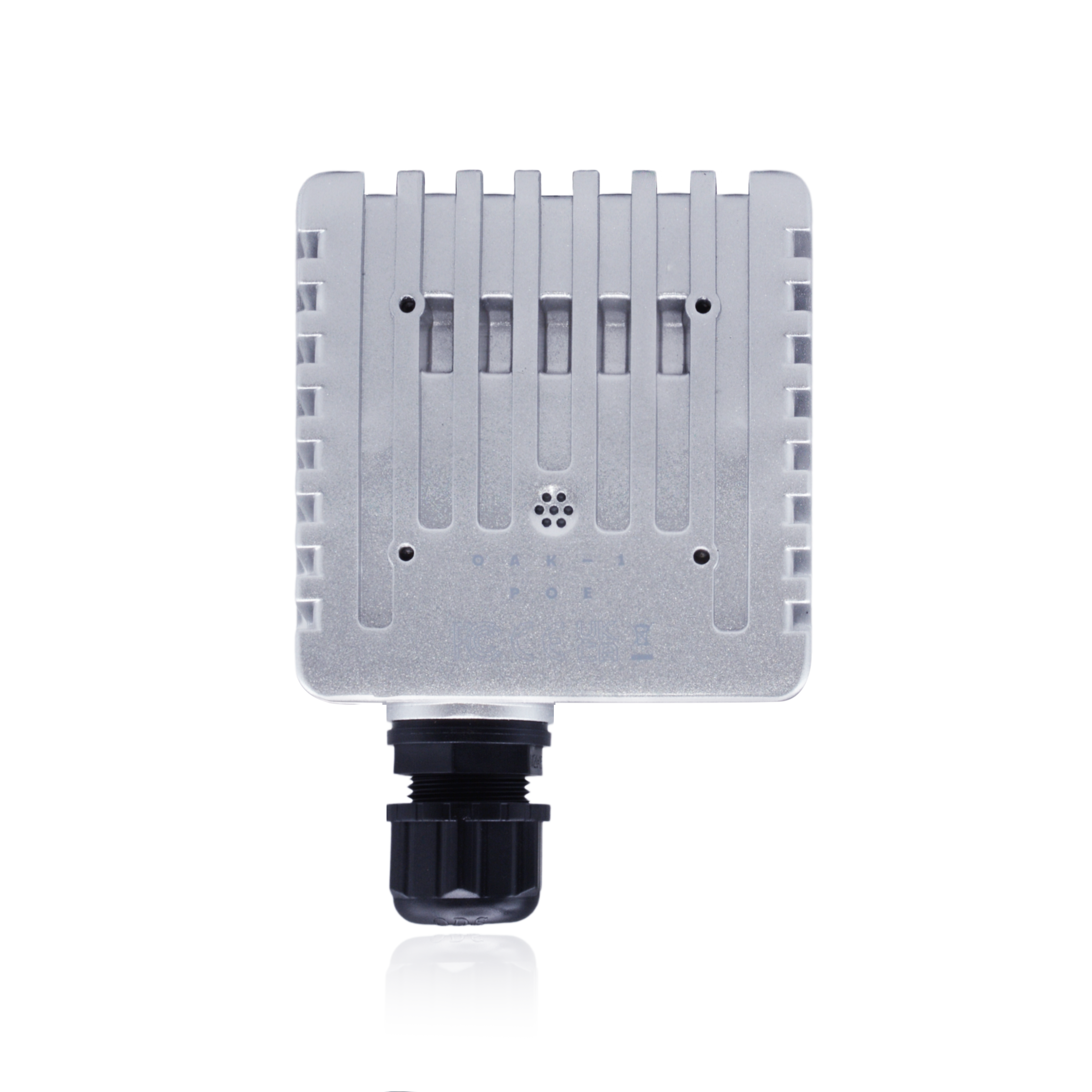

• Industrial grade aluminum housing with Front Gorilla Glass
• 1/4" tripod mount and 45mm M3 mount

• Dimension: 82x114x32 mm
• Weight: 294g

Product Diagram

Technical Specifications

Base concept

The baseboard has one on-board cameras which implement RGB vision, piped directly into the OAK-SoM-Pro for depth and AI processing. The data is then output to a host via USB 3.1 Gen1 (Type-C) or via 1000BASE-T ethernet connection. The OAK-1-PoE board exposes boot selection switches, allowing the end user to boot the OAK-SoM-Pro module from USB or the on-board eMMC or NOR flash.

Camera Specifications

There are two variants available for this camera. 12MP rolling shutter camera with DFOV of 120° or 1MP global shutter camera with 150° DFOV.

Power and connectivity

The base board offers full 802.3af, Class 3 PoE compliance with 1000BASE-T speeds (1Gbps). PoE injector/switch is required to power the device. If need an injector, you can buy it here.

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption + camera streaming: 2.5W - 3W
• PoE circuitry: 0.5W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5.5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Operating characteristics

This camera is shipped with IP67 rated enclosure. More details can be found here.

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operating temperature range documentation.

Getting started

For more information on how to start with POE devices, check our PoE deployment guide.

This OAK PoE camera accepts power input from he 802.3af, Class 3 PoE circuitry. It can also accept power through the on-board USB C connector - which is not exposed through the enclosure, so enclosure needs to be removed.

Booting can be accomplished from either the USB interface or from the eMMC or NOR flash on the OAK-SoM-Pro, and boot selection is configured with the DIP switch bank near the USB connector.

Interfacing with the OAK-SoM-Pro is also possible with PoE Board connector pads J5 and J8, which expose OAK-SoM-Pro auxiliary I/O and BW2099 Quad SPI, respectively. These headers are Amphenol/FCI 20021121-00010T1LF or equivalent.

• The reset button resets the OAK-SoM-Pro only.
• The 5V LED indicates 5V power is present on the BW2098POE.
• The PG LED indicates “power good” from the OAK-SoM-Pro.
• The “RUN” LED indicates that the OAK-SoM-Pro is not in reset.

Caution should be taken when handling any PoE circuit board. Do not directly touch the circuitry as potentials up to and exceeding 57V may exist. Always use electronics handling best practices.

Package Includes

Package contains:

• OAK-1-W PoE camera
• Ethernet cable, 2m
• Cable gland

Note: PoE injector / switch is required to power the device and it is not included in the packaging. If you need an injector, you can buy it here.

Files

1. CE Certificate
2. Board layout
3. Altium design files
4. Assembly drawing
5. Assembly output
6. Fabrication Drawing
7. Fabrication output
8. Schematics
