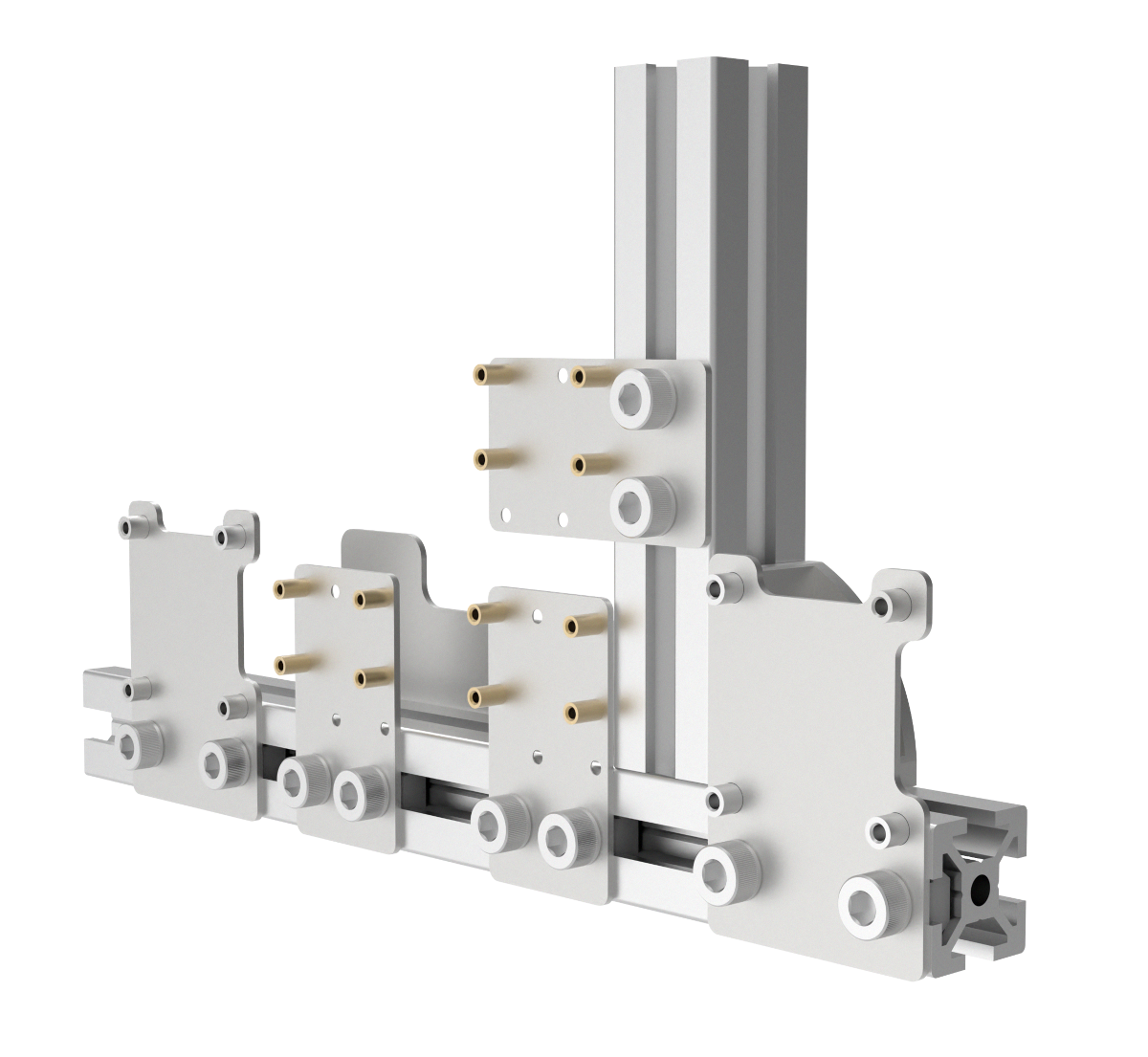

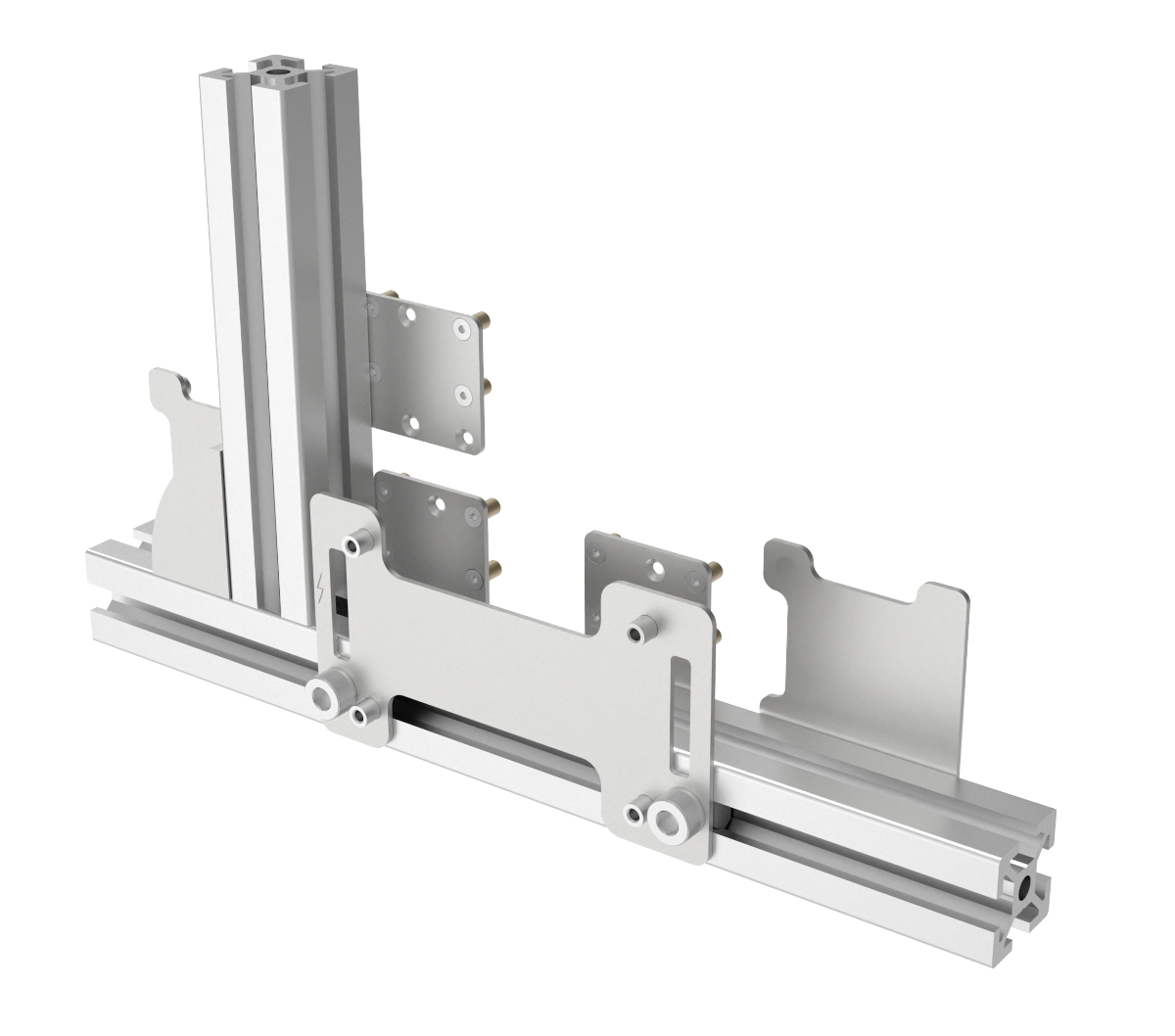

Luxonis OAK-FFC Kit is a set of extrusions and holders needed to build the mechanical scaffolding. You can now easily design a custom OAK module camera with chosen cameras and baselines (note: this version supports only base module).

The particular parts are made of:

• Screw: 304 stainless steel
• Holder: SGCC
• ALU Extrusion: 6061 Aluminum
• Standoff on AR024 holder: 303 stainless steel
• Standoff on small board holder: copper

<!–--split--–>

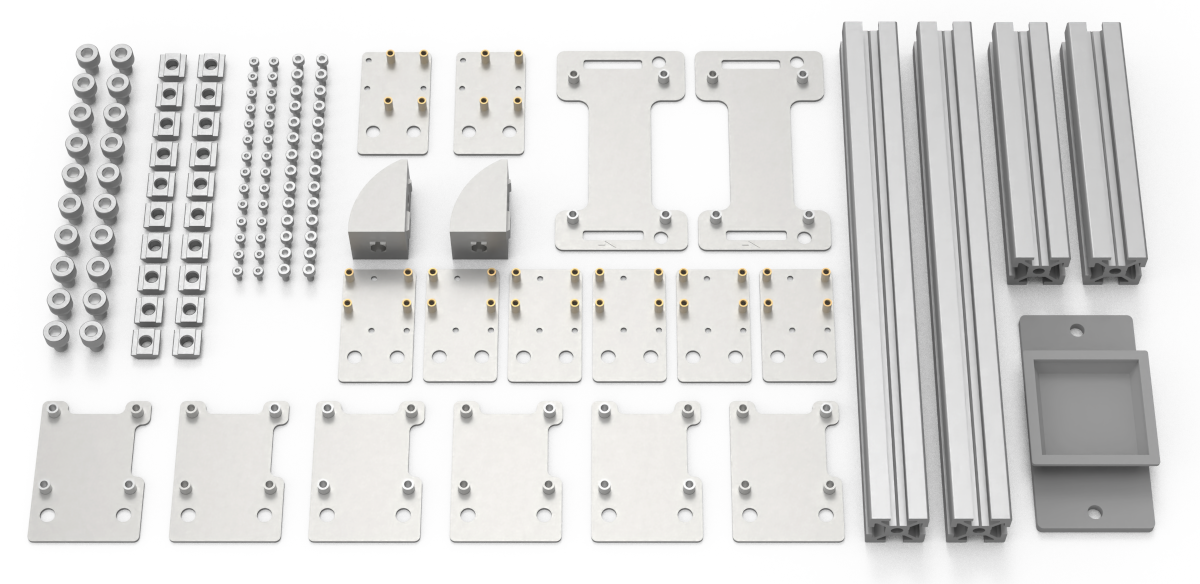

Package includes

• 1x hex key 1.5
• 1x hex key 2
• 1x hex key 4
• 2x ALU extrusion (long): 2cm x 2cm x 20cm

• 2x ALU extrusion (short): 2cm x 2cm x 10cm
• 6x FFC small board camera holder (horizontal baseline)
• 2x FFC small board camera holder (vertical baseline)
• 6x FFC AR0234 holder
• 2x OAK FFC holder
• 1x quick snap holder
• 20x M5 screws (hex key 4)
• 20x sliding extrusion M5 nut
• 28x M2 screws (hex key 1.5)
• 28x M2.5 screws (hex key 2)
• 2x Reversal Bracket

Material

The particular parts are made of:

• Screw: 304 stainless steel
• Holder: SGCC
• ALU Extrusion: 6061 Aluminum
• Standoff on AR024 holder: 303 stainless steel
• Standoff on small board holder: copper

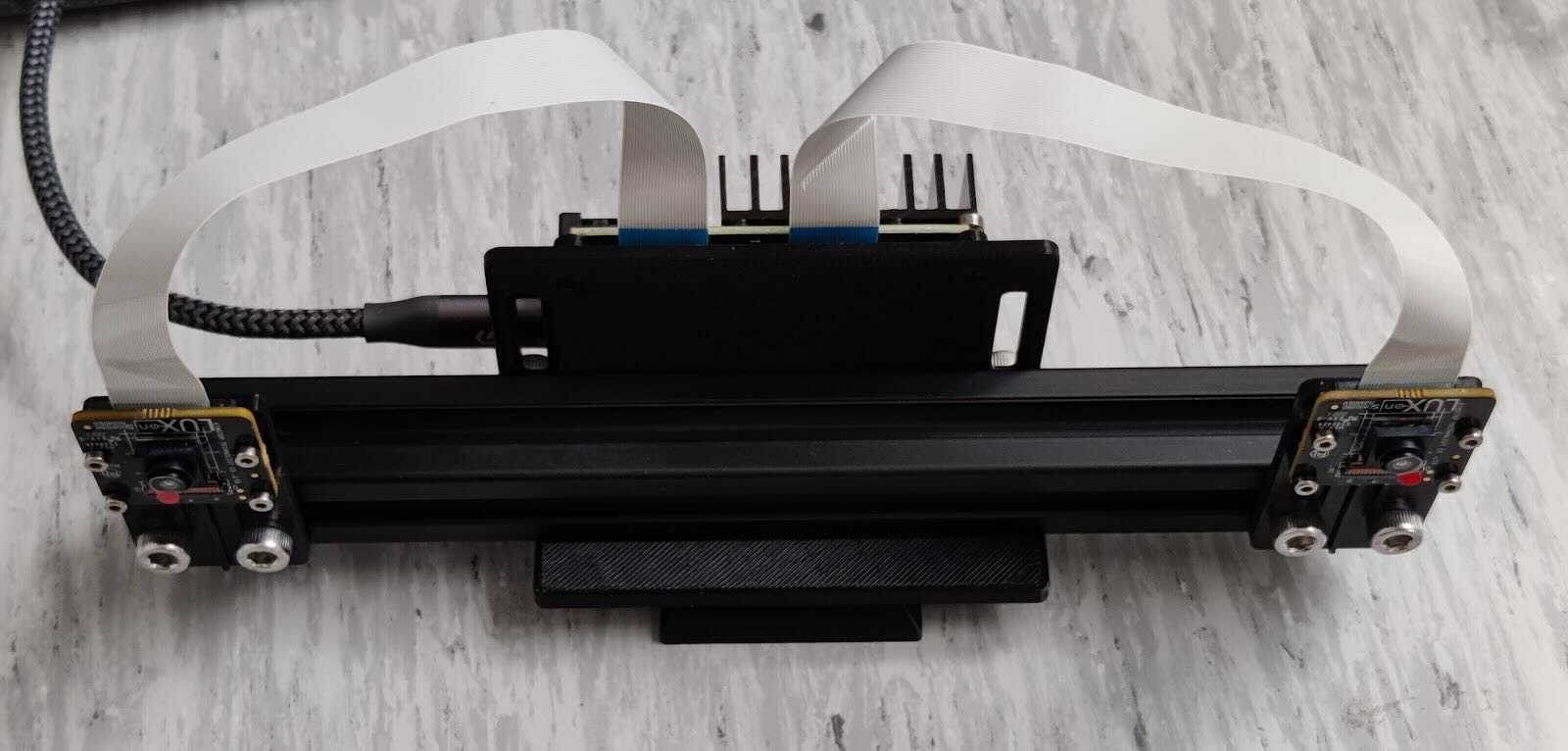

Note! The below photo shows the early prototype of the kit. The parts will be silver.
