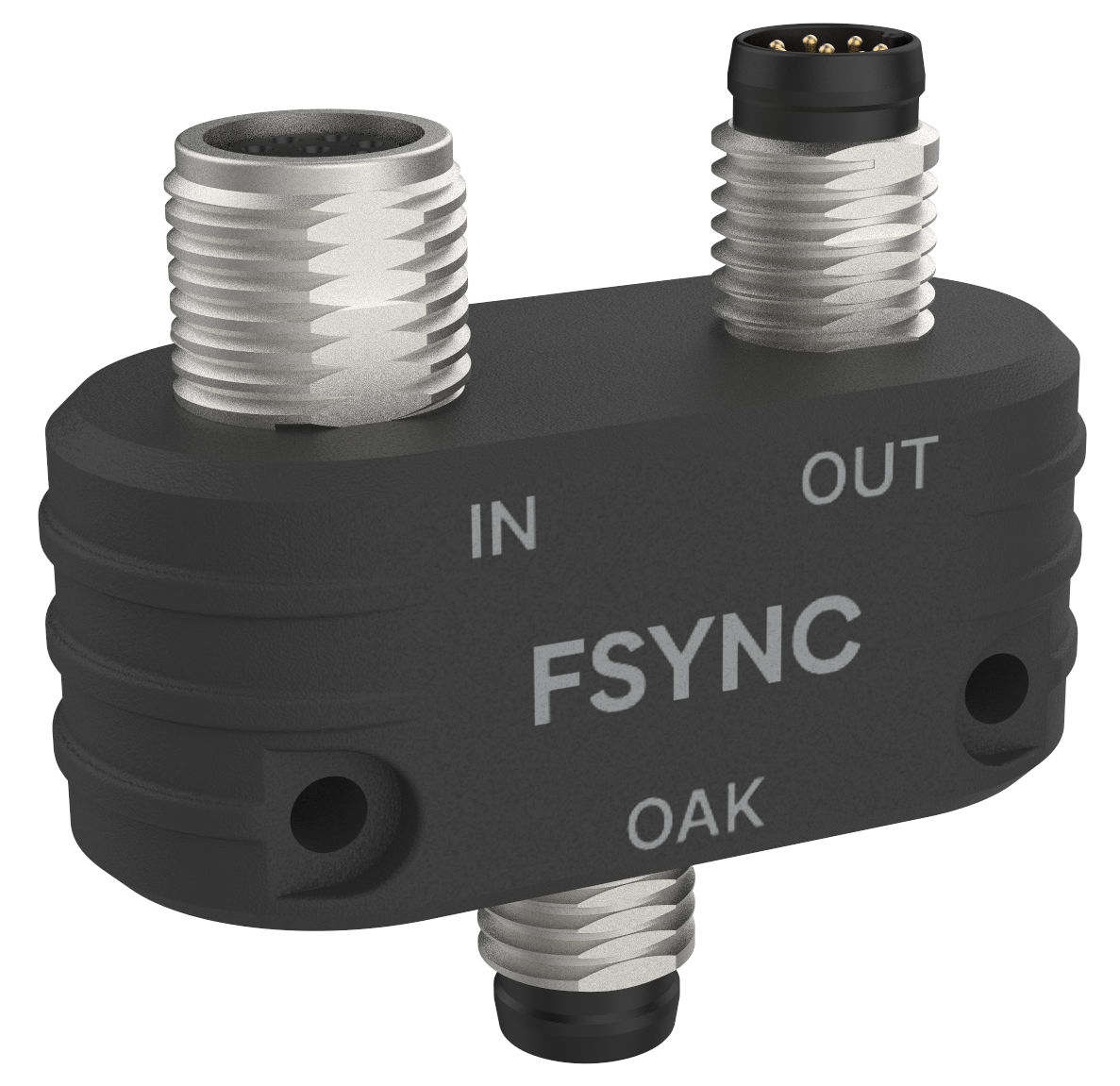

FSYNC Y-adapter allows users to easily hardware synchronize multiple devices that have M8 auxiliary connector. If cameras are hardware synchronized, they will all start sensor exposure at the same time for each frame.
Devices that have M8 auxiliary connector:- All Series 2 OAK POE cameras: OAK-D S2 PoE, OAK-D W PoE, OAK-D Pro PoE, OAK-D Pro W PoE. These currently require External FSYNC signal.
- OAK-D SR PoE
<!–--split--–>
Description
For more information about frame synchronization please follow to the documentation.
FSync Y adapter provides true hardware frame sync capability precisely syncing frames on multiple cameras. 2x female-to-male cables need to be used with the FSync Y-adapter:
- cable connecting the Y-adapter to the OAK's M8 connector
- cable connecting to the next Y-adapter in the chain, so it can be daisy-chained

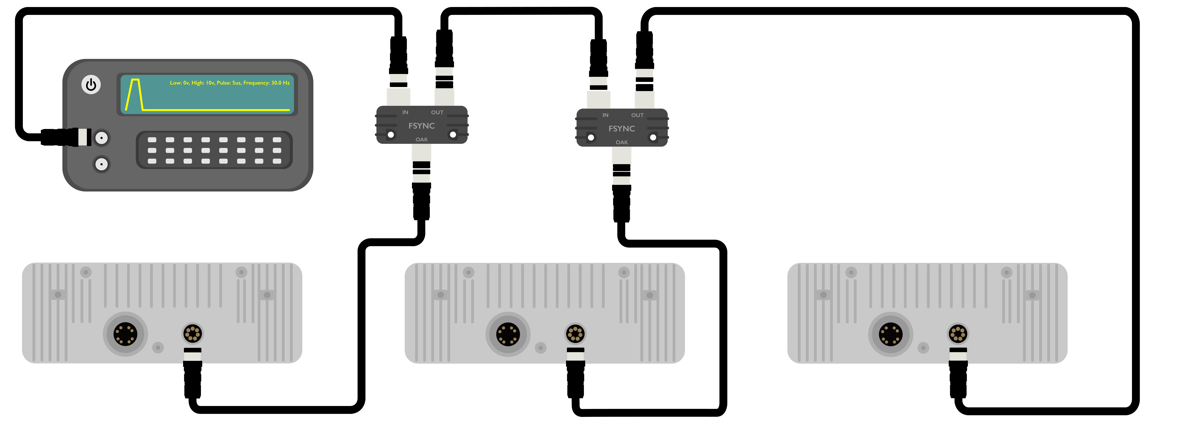

One can daisy-chain multiple OAK cameras as per wiring schematics below. Multiple cameras can be daisy-chained.
Specifications
- Dimension: 23.5x33x10 mm
- Weight: 5g
Package Includes
Package contains:- 1x FSYNC Y-adapter
- 2x M8 2 meter cable (male to female)
