The original OAK-D PoE offers an IP67 rated enclosure for harsher environments and RJ45 Ethernet connector. See the 2nd generation of this for more CCM options including wide field of view, industrial M12X connector or its with additional features.

• Rugged rated enclosure
• BNO086 IMU single chip 9 axis sensor with embedded sensor fusion
• 4 TOPS of processing power (1.4 TOPS for AI)
• RJ45 for power delivery and communication

<!–--split--–>

Description

OAK-D PoE is the ultimate camera for robotic vision that perceives the world like a human by combining stereo depth camera and high-resolution color camera with an on-device and capabilities.

PoE connection allows cameras to communicate to other computers via networking protocols (, UDP, , , etc.). As our PoE models feature device flash memory, you can also run your programs in . OAK PoE cameras are housed in an rugged, IP-rated enclosure, which is required for industrial and outdoor use.

We suggest following as the first steps after installation.

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architected/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Object tracking: 2D and 3D tracking with ObjectTracker node

• 16GB Internal Storage (eMMC)

• Base line: 75 mm
• Ideal depth range: 70cm - 12m. See technical specifications.
• Power consumption: Up to 5.5W. See technical specifications

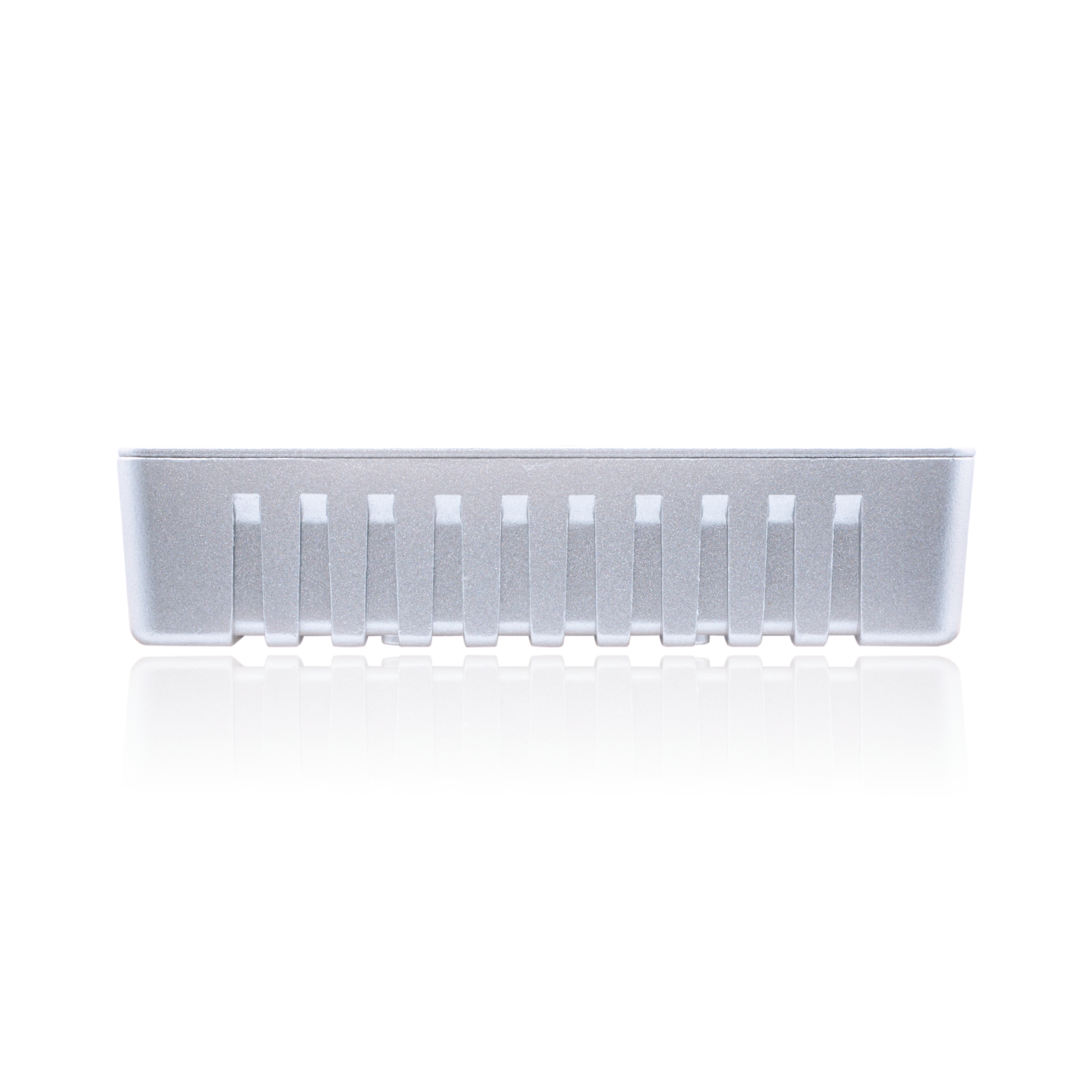

• Industrial grade aluminum housing with Front Gorilla Glass
• 1/4" tripod mount and 45mm M3 mount

• Dimension: 130x101x31 mm
• Weight: 361g

Product Diagram

Technical Specifications

Camera specification

Do you need more sensor options or smaller body? See the updated version OAK-D-S2 PoE.

For Wide-FOV you can opt in OAK-D-W PoE.

For active stereo with improved depth perception and better low light performance due to IR illumination you can choose a PRO line cameras available in standard and wide FOV option.

Stereo depth perception

This OAK camera has a baseline of 7.5cm - the distance between the left and the right stereo camera. Minimal and maximal depth perception (MinZ and Max) depends on camera FOV, resolution, and baseline - more information here.

• Ideal depth range: 70cm - 12m
• MinZ: ~20cm (400P and extended), ~35cm (400P OR 800P, extended), ~70cm (800P)

• below 4m: below 2% absolute depth error
• 4m - 7m: below 4% absolute depth error
• 7m - 10m: below 6% absolute depth error

Features

This OAK camera has an integrated BNO085, a 9-axis IMU (Inertial Measurement Unit). See IMU node for the API details on how to use it.

Power and connectivity

The base board offers full 802.3af, Class 3 PoE compliance with 1000BASE-T speeds (1Gbps). PoE injector/switch is required to power the device. If need an injector, you can buy it here.

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption + camera streaming: 2.5W - 3W
• PoE circuitry: 0.5W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5.5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Operating characteristics

This camera is shipped with IP67 rated enclosure. More details can be found here.

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operating temperature range documentation.

Our cameras are tested for vibration tolerance according to the EN 60068-2-6:2008 standard. More information about the testing you can find here.

Getting started

For more information on how to start with POE devices, check our PoE deployment guide.

This OAK PoE camera accepts power input from he 802.3af, Class 3 PoE circuitry. It can also accept power through the on-board USB C connector - which is not exposed through the enclosure, so enclosure needs to be removed.

Booting can be accomplished from either the USB interface or from the eMMC or NOR flash on the OAK-SoM-Pro, and boot selection is configured with the DIP switch bank near the USB connector.

Interfacing with the OAK-SoM-Pro is also possible with PoE Board connector pads J5 and J8, which expose OAK-SoM-Pro auxiliary I/O and BW2099 Quad SPI, respectively. These headers are Amphenol/FCI 20021121-00010T1LF or equivalent.

• The reset button resets the OAK-SoM-Pro only.
• The 5V LED indicates 5V power is present on the BW2098POE.
• The PG LED indicates “power good” from the OAK-SoM-Pro.
• The “RUN” LED indicates that the OAK-SoM-Pro is not in reset.

Caution should be taken when handling any PoE circuit board. Do not directly touch the circuitry as potentials up to and exceeding 57V may exist. Always use electronics handling best practices.

Package Includes

Package contains:

• OAK-D PoE camera
• Ethernet cable, 2m

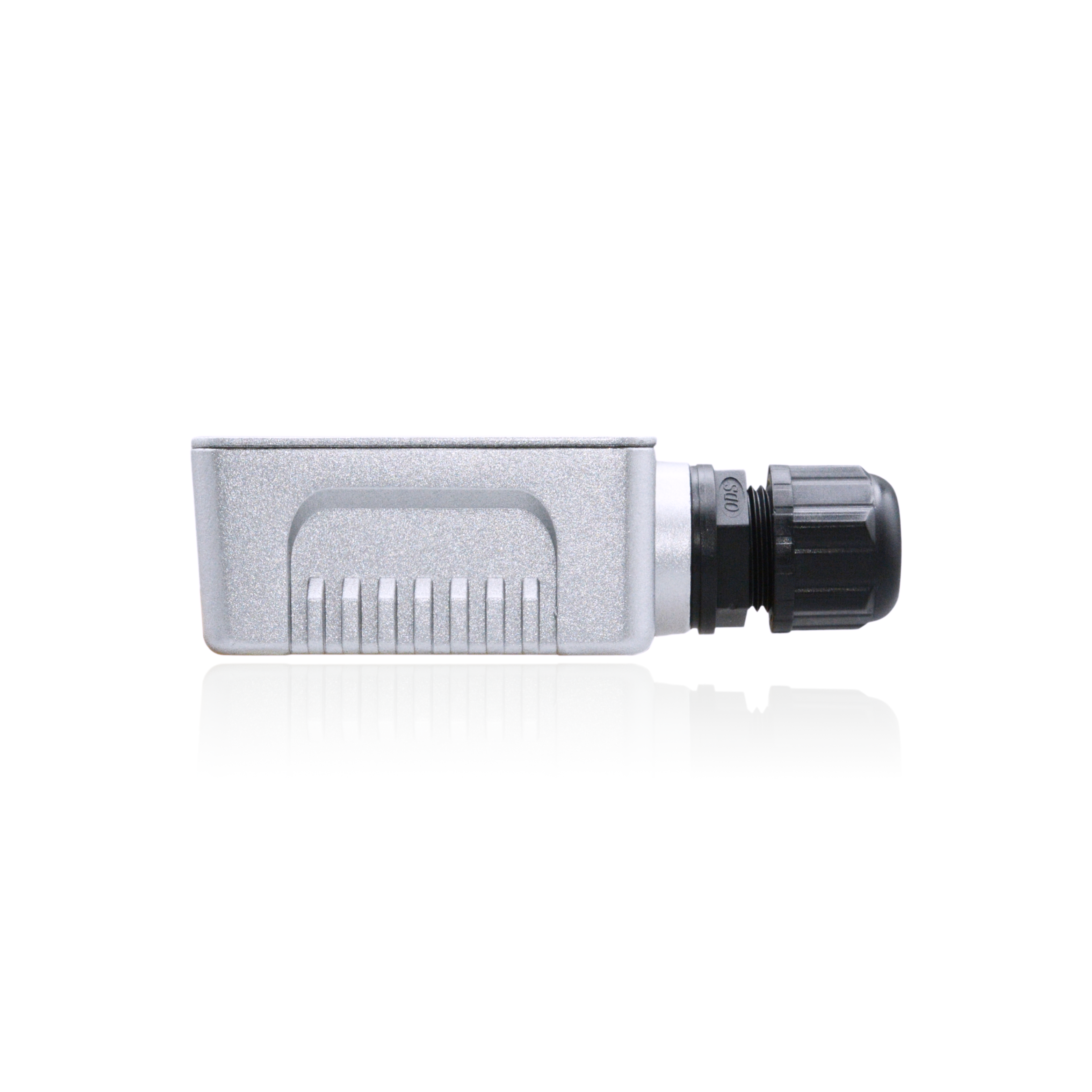

• Cable gland
• Cleaning cloth

Note: PoE injector / switch is required to power the device and it is not included in the packaging. If you need an injector, you can buy it here.

Files

1. CE Certificate
2. Datasheet
3. Board layout
4. 3D Models
5. Altium design files
6. Assembly drawing
7. Assembly output
8. Fabrication Drawing
9. Fabrication output
10. Schematics
