This camera module can be used with any of the , perfectly suited for quick prototyping.
Key features:- Sensor: IMX378
- Type: Rolling Shutter
- DFOV / HFOV / VFOV: 81° / 69° / 55°
- Resolution: 12MP (4056x3040)
- Focus: Auto-Focus: 10cm - ∞
- Max Framerate: 60 FPS
<!–--split--–>
Description

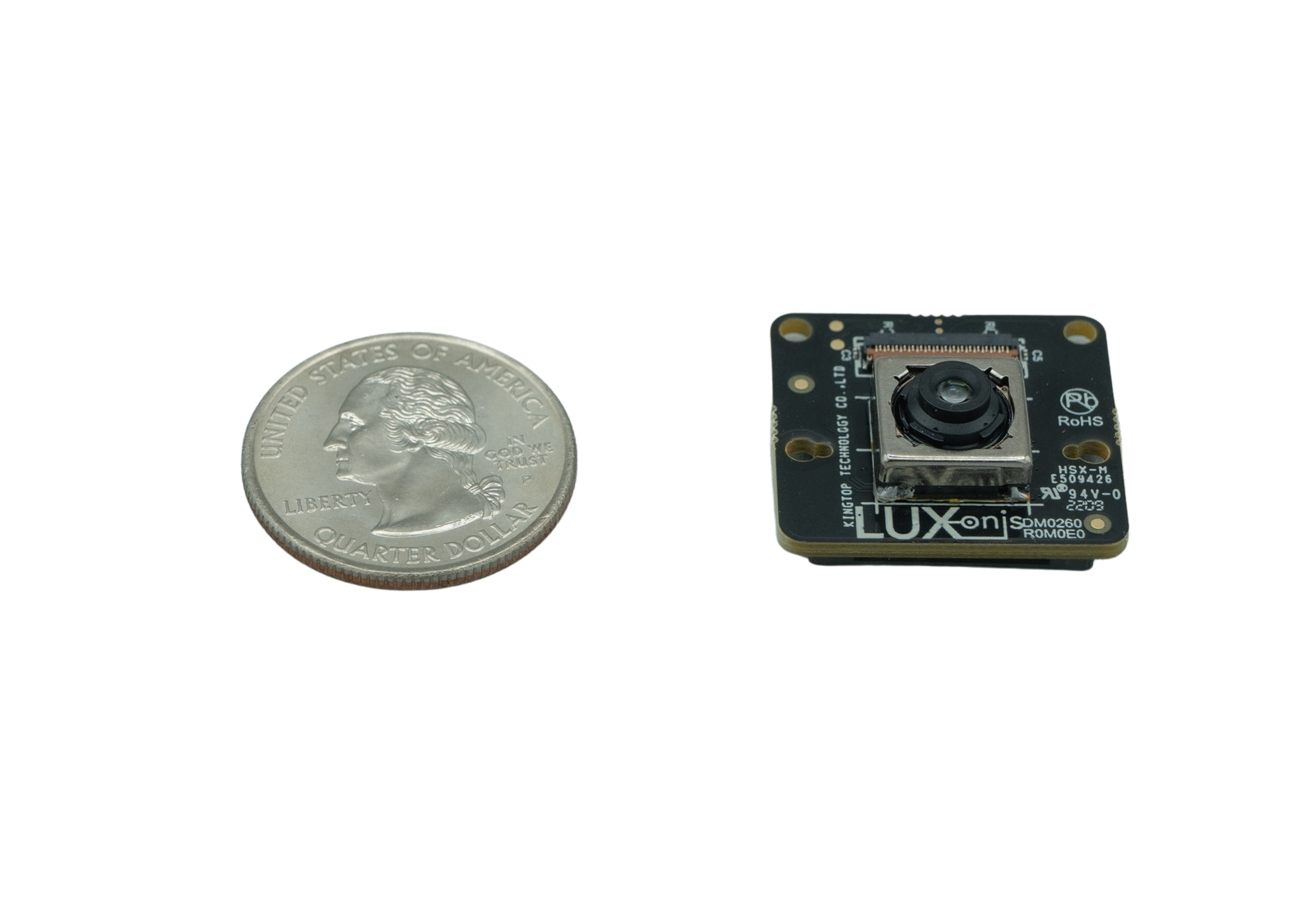

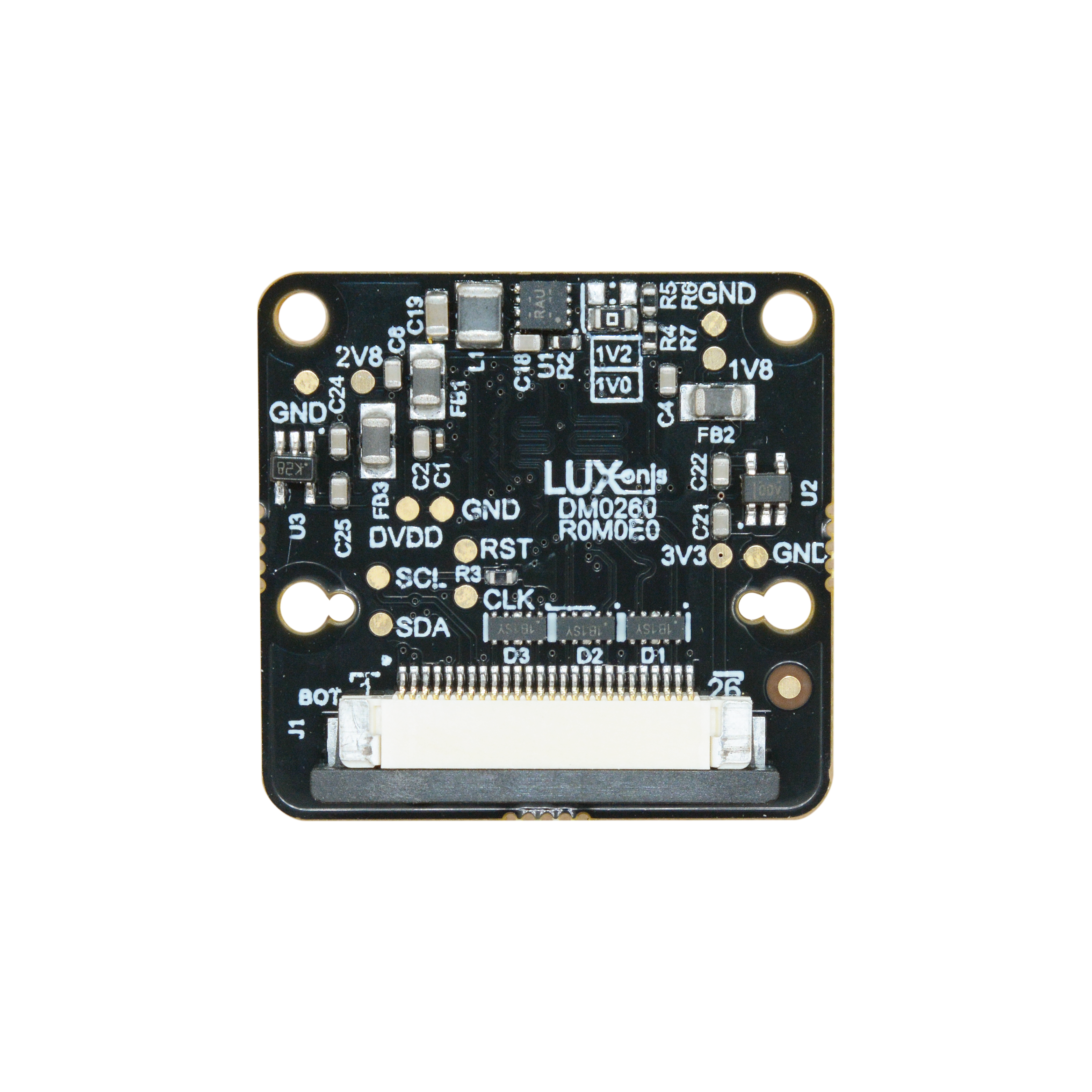

The OAK-FFC-IMX378 is a carrier board for the Arducam PY011 IMX378 camera module. A 26-pin FFC is used to carry 5V power, 4-lane MIPI, I2C, and other control signals between the this camera module and the controller baseboard.
Camera Specifications
| Color Camera | |
| Sensor | IMX378 |
| Type | Rolling Shutter |
| DFOV / HFOV / VFOV | 81° / 69° / 55° |
| Resolution | 12MP (4056x3040) |
| Focus | Auto-Focus: 10cm - ∞ |
| Max framerate | 60 FPS |
| Spectral range | Visible only |
Specifications
Dimensions- Width: 25 mm
- Height: 24 mm
- 26 pin 0.5mm FFC interconnect to baseboard
- 30 pin interface to IMX378 camera module
- 4-lane MIPI
- Aux/Control signals to camera module
- 5V power input via FFC
- On-board power generation for camera module
- Design files produced with Altium Designer 20
More information can be found .
Package Includes
Package contains:
- OAK-FFC IMX378 camera module
- Flexible flat cable, 15cm
